Set a Default Template

Set a default template to view plot results directly.

If a default template is set for a result file then RVS will display the plot result directly. If the set default template doesn't match the result file, the plot TOC is displayed with a message to select another valid template.

Follow the steps to set a default template:

  1. Click of a template.
  2. Choose one of the options:
    • Click Set As Default from the context menu.

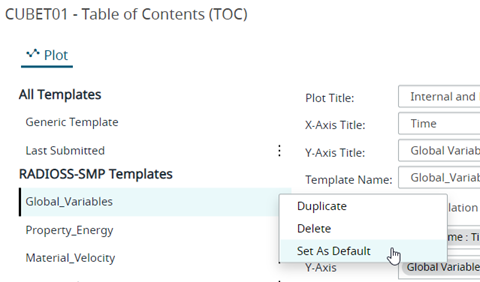

    Figure 1. Set Plot Template as Default

    Set Plot Template as Default
    • Click Set Template as Default check box at the bottom of the plot TOC.
    The selected template will be set as a default template.
