Mesh Stack Orientation
Description
This tool is used to orient the hex/ wedge elements along the stack direction. User can modify the stack direction by selecting a shell element as reference top element.

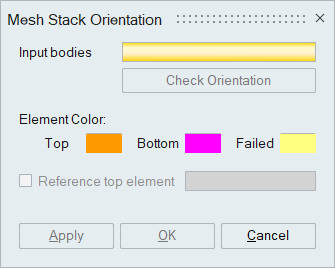

Check Orientation
This option will verify the stack orientation for the input bodies and highlight the top, bottom and failed elements based on the respective color.
Reference top element
User can specify a reference shell element to select the top surface of the stack. This option is supported for single body input only.

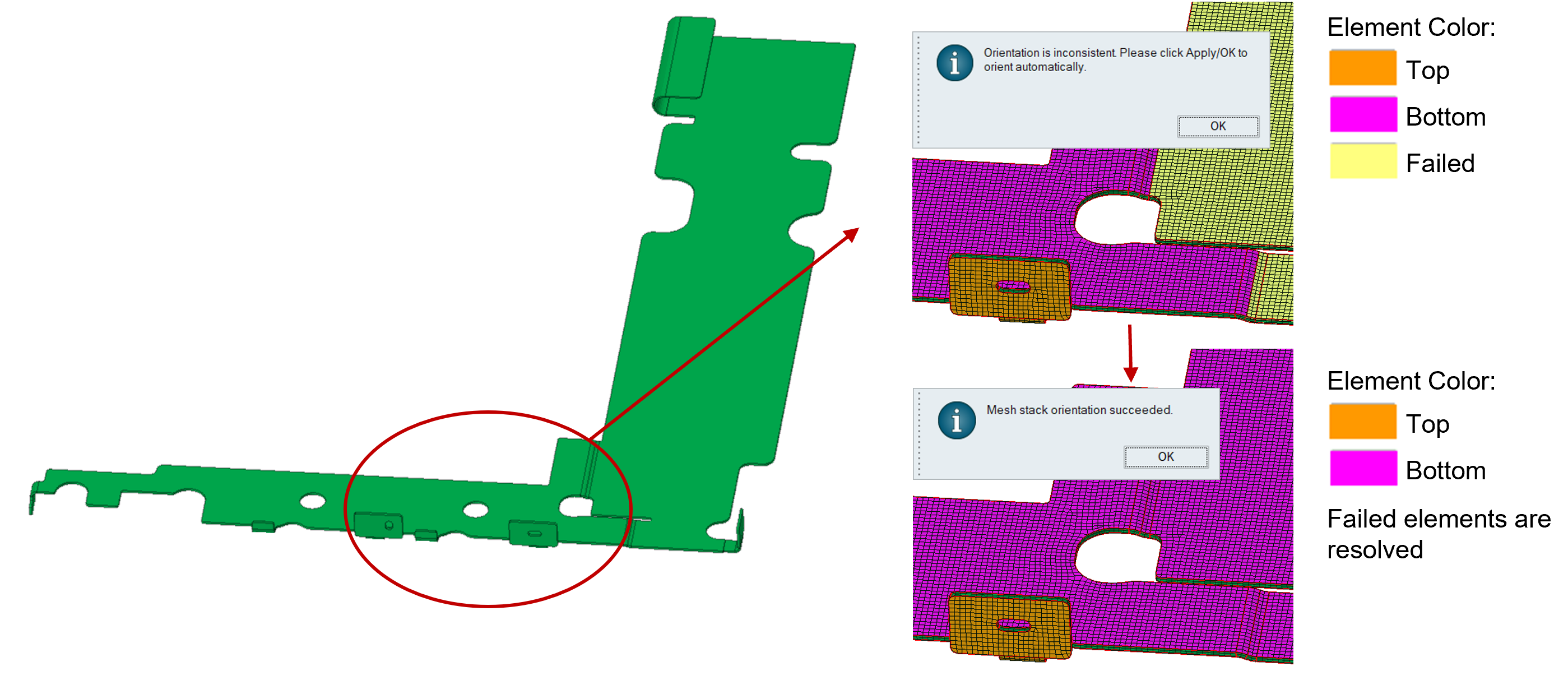

Example
