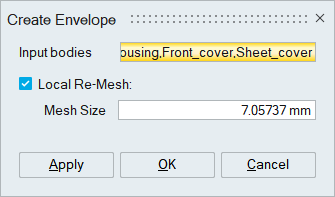

Create Envelope
Introduction
This tool helps in creating the initial input required for the cavity mesh (Acoustic mesh).
Local Re-Mesh
Activating this checkbox, will re-mesh the filled surfaces by using the given mesh size.
Note:
- The output will be created in a new model.
- Output bodies will have only lower order surface elements (TRI3/QUAD4) with all the planar edge loops filled, and the new faces created at planar edge loops will be grouped by name Fill_Planar_Edge_Loop.
Example

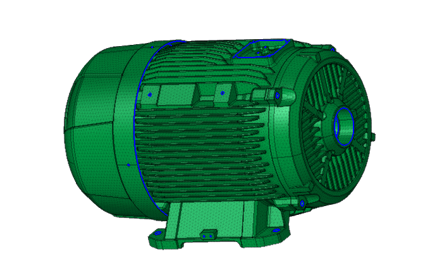

Input

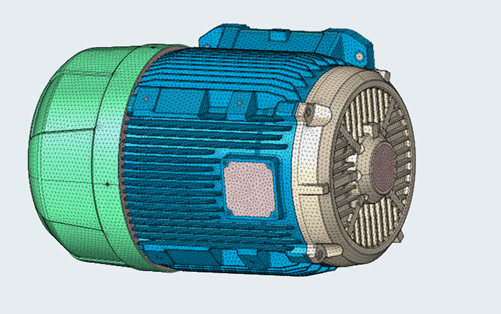

Output
