2.5D Mesh

Mesh > 3D Mesh > 2.5D Mesh

Description

2.5D Mesh is used to create solid body containing hex/wedge/tet elements depending on the elements present in the face or based on the selected element type.

Limitations

  • Top and bottom face should be planar FEM faces.
  • Top and bottom face should be connected by four edged faces.

No of layers

No of layers defines the number of elements between top and bottom face.

Tet elements

If this option is on, it will create tet elements between top and bottom face.

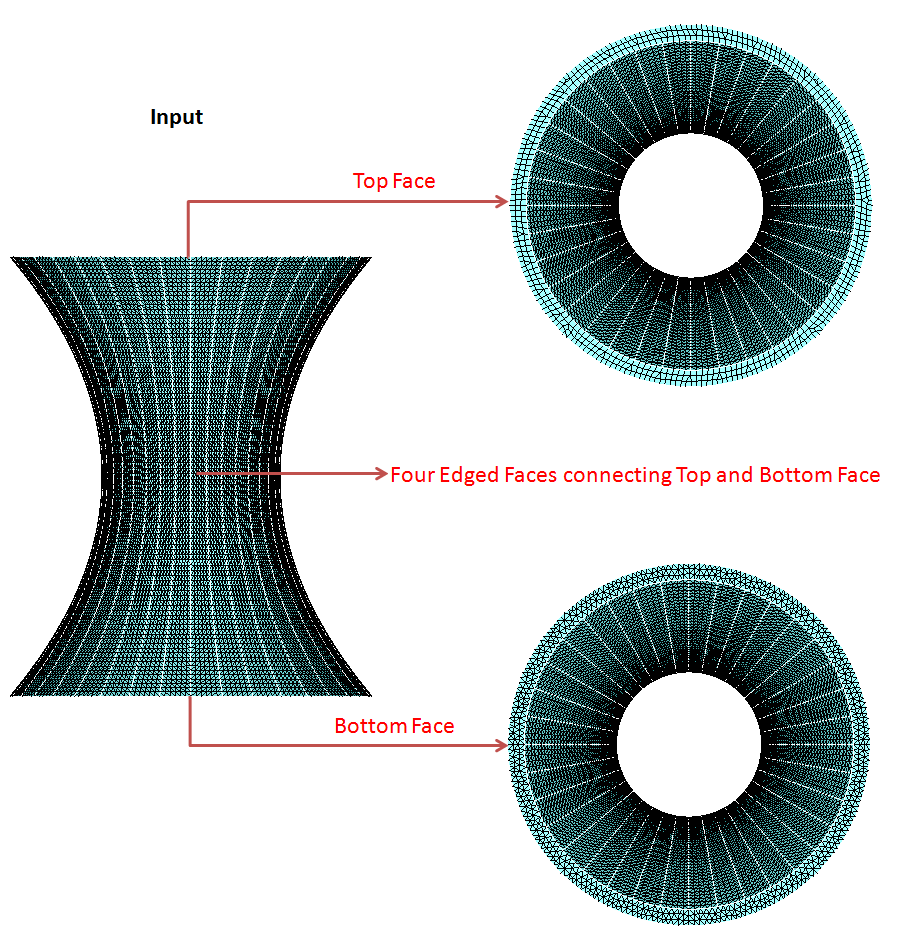

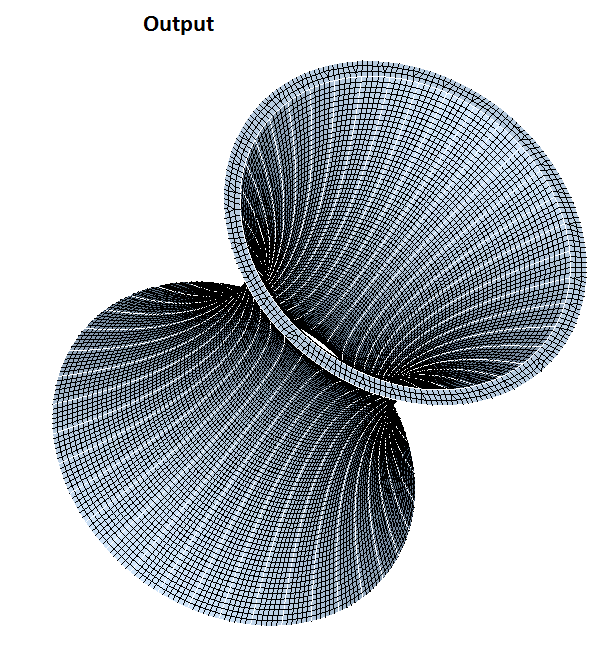

Example
