Identify Thin 2.5D Bodies

Geometry > Body > Identify Thin 2.5D Bodies

This tool extracts thin 2.5D bodies based on the specified thickness. It supports both CAD and mesh bodies.

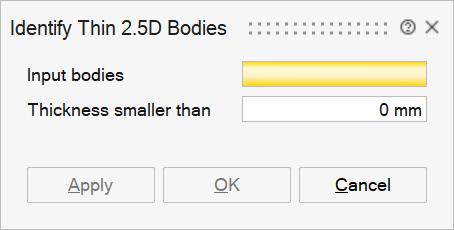

Input bodies

Select the bodies as input.

Thickness smaller than

It allows users to filter and identify only those bodies with a thickness less than the specified value.

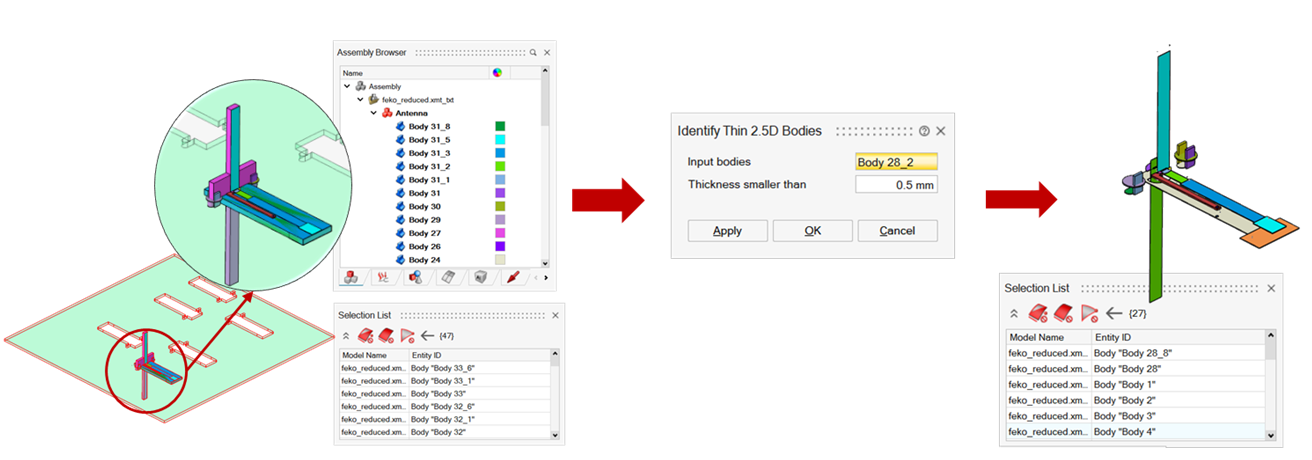

Example
