Remove Chamfer

Geometry > Body > Remove Chamfer

Dialog Box

This tool is used to remove the chamfers in the FEM body. User can pick the chamfer faces and remove it.

  • Removable Faces

    Select the chamfer faces that need to be removed.

  • Adjacent planar faces

    Select the planar faces that are adjacent or connected to the chamfer faces. This input is optional, if there are planar faces connected to only one side of chamfer faces.

  • Collapse elements

    All the elements in the chamfer faces will be collapsed out if this toggle is enabled.

Example

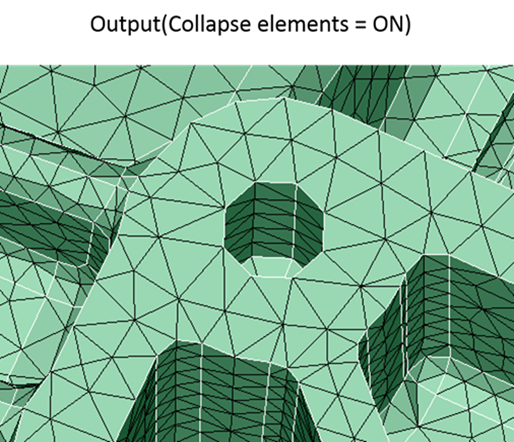

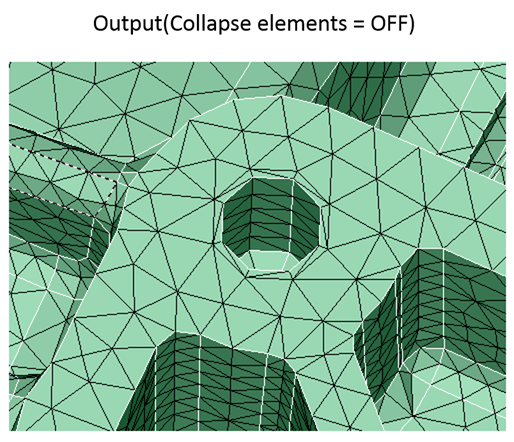

Input Output(Collapse elements=OFF) Output(Collapse elements=ON)
