Modify Fillet

Geometry > Body > Modify Fillet

Dialog Box

This option is used to modify the existing fillet by changing the radius and number of layer of elements.

  • Show Length Direction Edges

    This will identify the edges along length direction of the fillet automatically. It avoids selection of edges by hand.

  • Radius

    Specify the fillet radius.

  • Number of layers

    Specify the number of layers of elements.

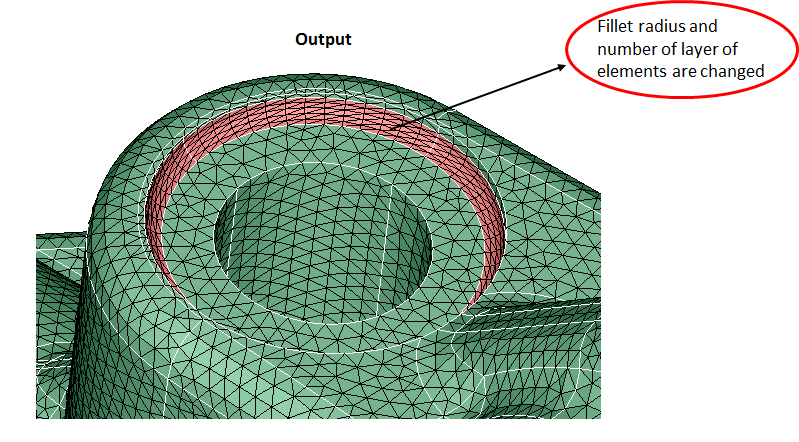

Example

Input Output
