Bounding Body

Geometry > Body > Create > Bounding Body

Box

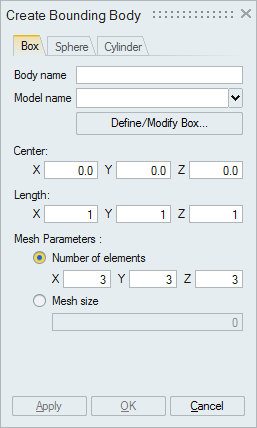

This tool is used to create a mesh body (bounded) using a box which can be defined using Define/Modify Box button. The box can be modified by changing the length along x, y and z directions. Number of elements or mesh size can be given to define mesh along x, y and z direction.

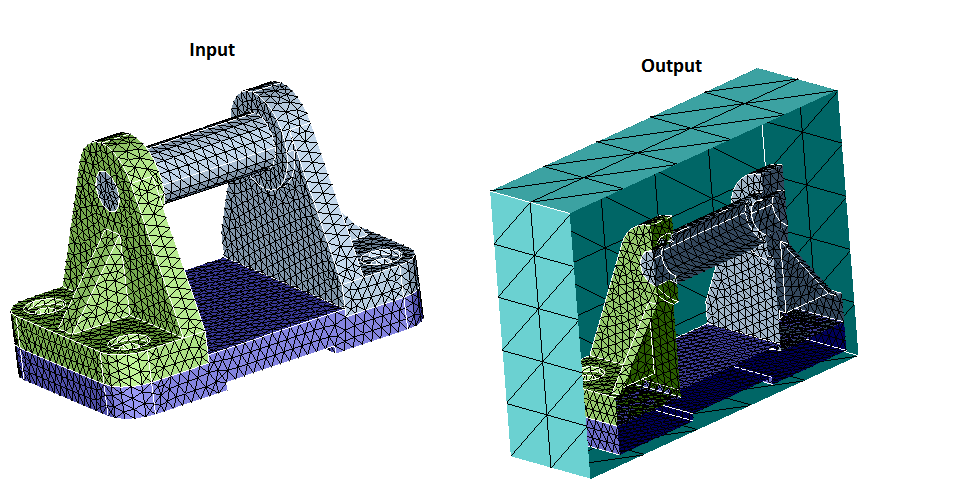

Example

Sphere

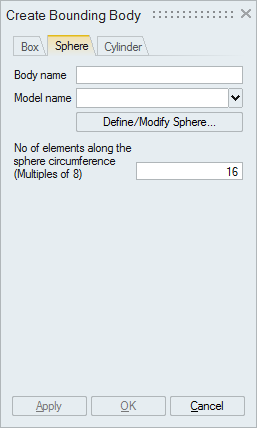

This tool is used to create a mesh body using a sphere which can be defined using Define/Modify Sphere button. The number of elements along the sphere circumference can be specified.

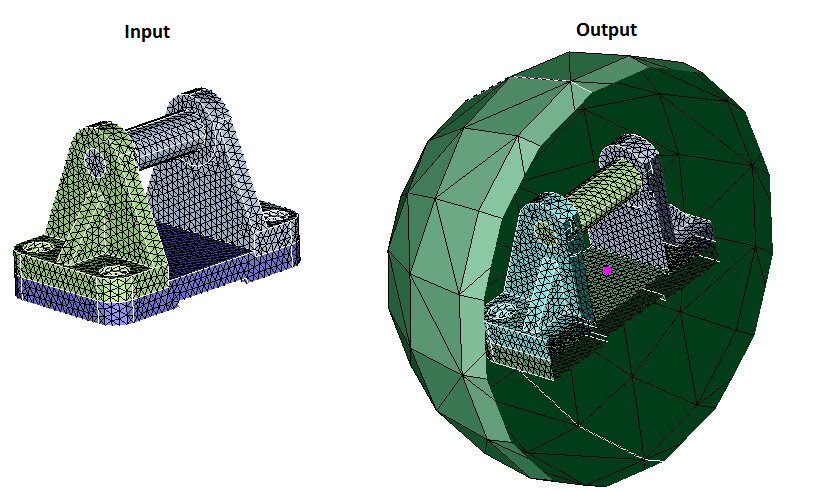

Example

Cylinder

This tool is used to create a mesh body using a cylinder which can be defined using Define/Modify Cylinder button. Number of elements or mesh size can be given to define mesh size along circular and axial direction.

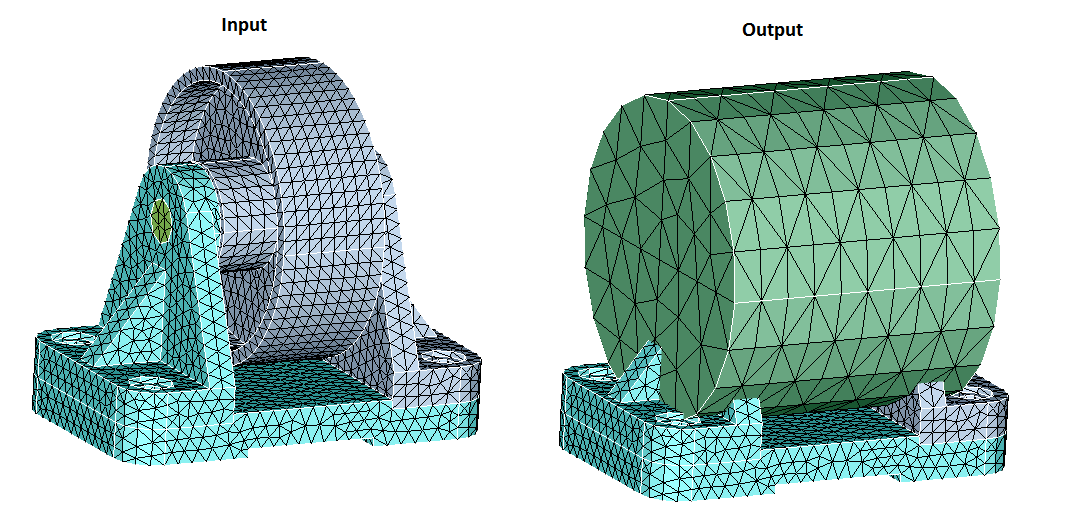

Example
