From Solid Elem
Introduction
Use this tool to create a solid body from the existing solid elements. The solid elements are removed from the original body and created as a new solid body. The original and the new bodies are connected by a shared face.

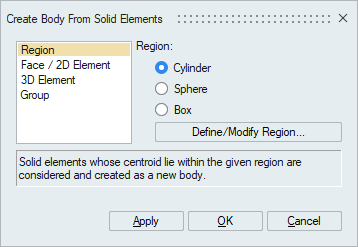

Region

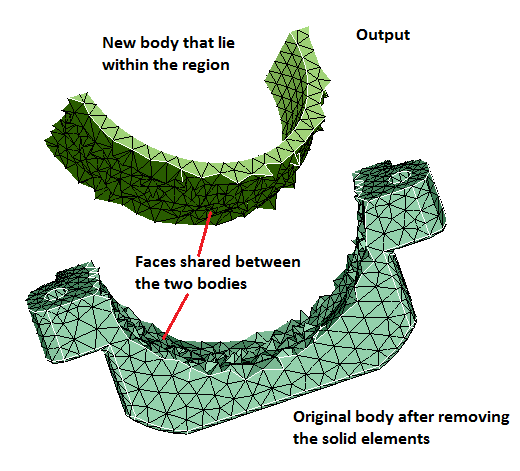

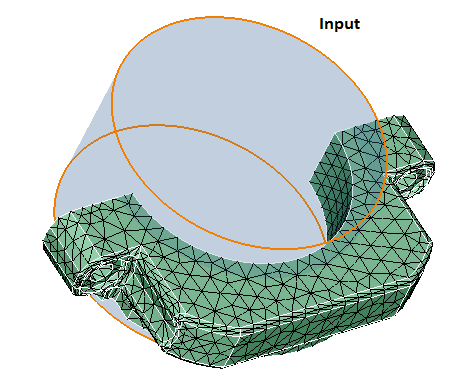

The solid elements that lie within the defined shape (cylinder/sphere/box) are considered and created as a new body.
Example

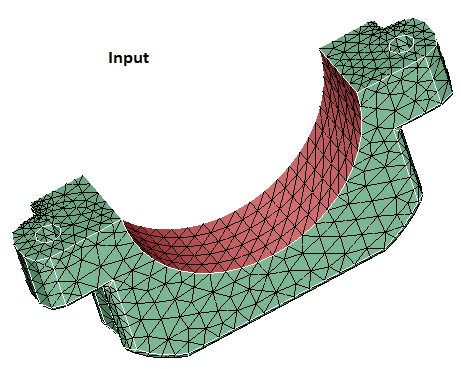

Face/2D Element or Group
The solid elements that are connected to the nodes of the given face or 2D elements or groups are considered and created as a new body.

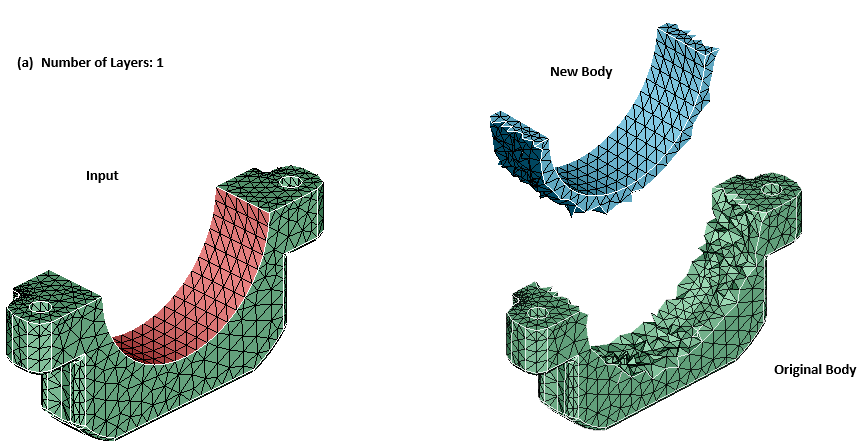

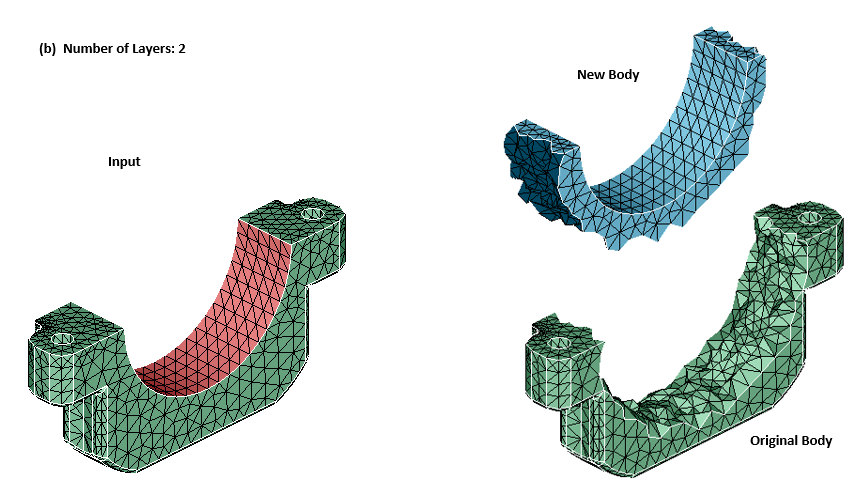

- Number of layers: Specifies the number of solid element layers that needs to be considered.
- Example

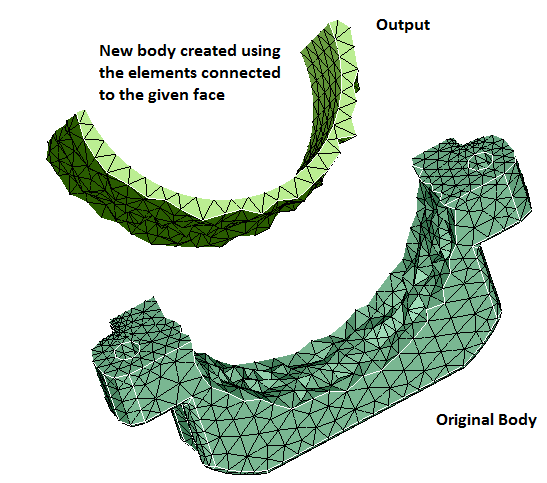

Solid elements connected to face
The solid elements whose faces connected to the given face or 2D elements or groups are considered and created as a new body.
- Example
3D Element
A new body is created from the selected solid elements.
