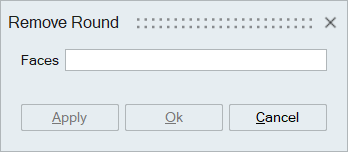

Remove Round
Description
This option is used to remove the round fillets in CAD Parasolid bodies imported with “Save geometry in database” option enabled.
User can pick the round fillet faces and remove it.
Note: Currently this tool is only available if the env
SIMLAB_SHOW_REMOVE_ROUND is set true.
Examples

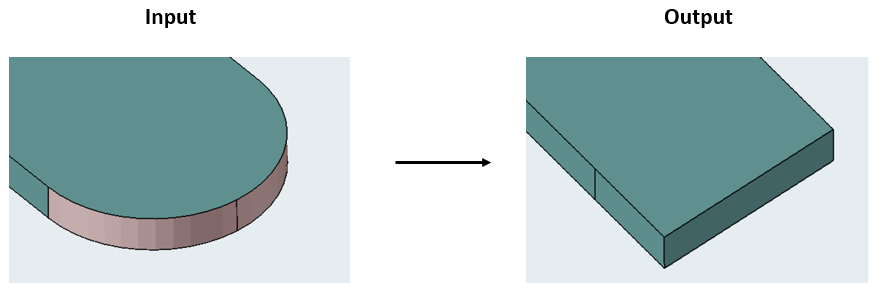

Example 1

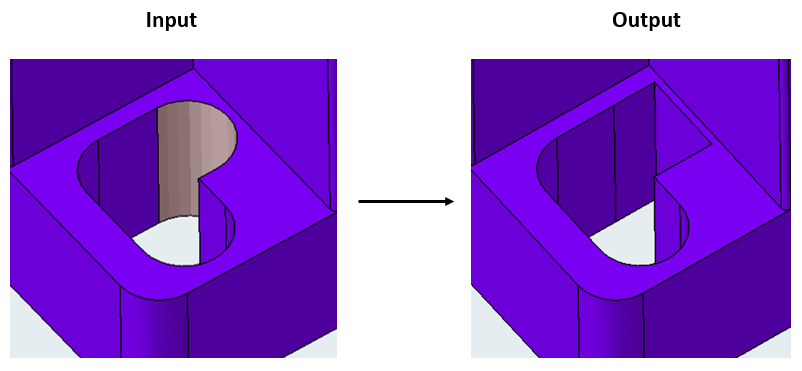

Example 2
