Remove Hole

Geometry > Body > Feature > Hole

Dialog Box

This tool is used to remove the holes/slots in the FEM model and CAD Parasolid models. User can either select a body or faces to remove the holes.

  • Remove
    • Selected holes
      • In the case of hole removal, user can give all the faces of the hole or a face in the hole. If only a face per hole is selected, the connected faces of the hole along the axis will get identified and removed.
      • In the case of slot removal, user has to input all the faces of the slot.
    • Holes identified by radius

      Holes specified in the given radius range will be removed from the selected body.

    • All holes

      All the holes will be removed from the selected body.

  • Exclude holes

    This option helps to exclude holes from getting removed while Holes identified by radius and All holes options are chosen to remove holes from body.

  • Local re-mesh

    If you activate Local re-mesh check box, it will re-mesh the newly created elements.

Examples

  • Example: Selected holes

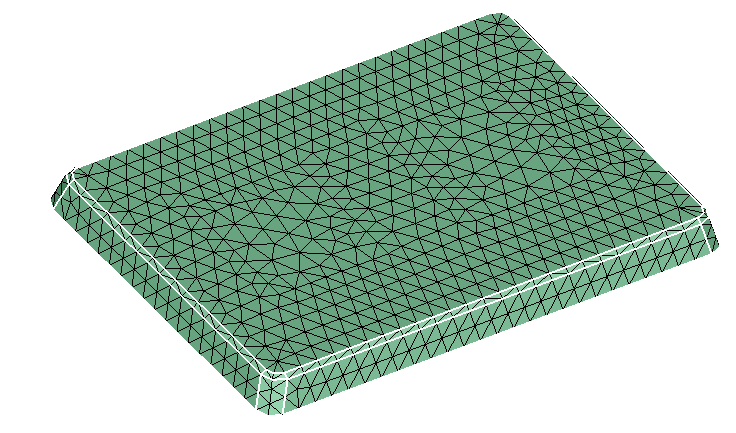

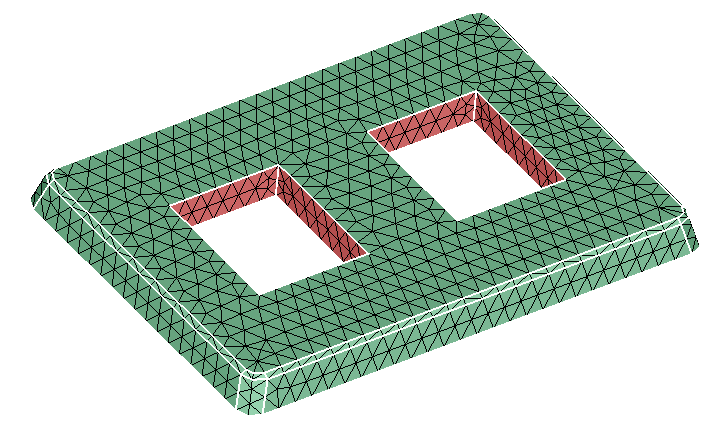

    • Mesh: Input

    • Output

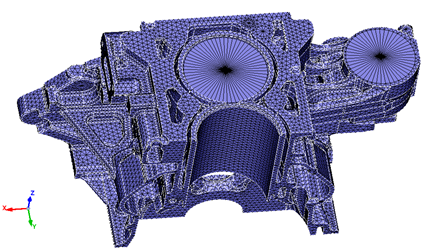

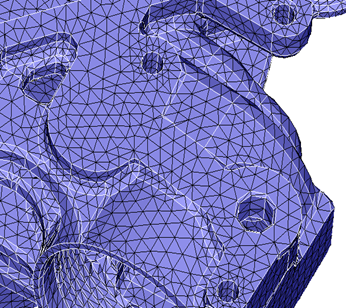

    • Mesh: Input

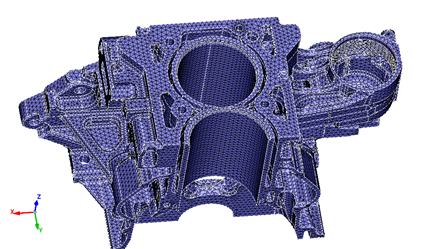

    • Output

    • CAD (Parasolid)

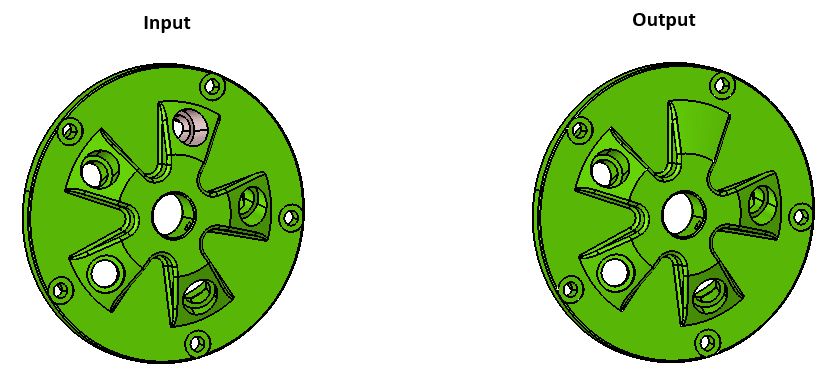

  • Example: Holes defined by radius
    • CAD (Parasolid)

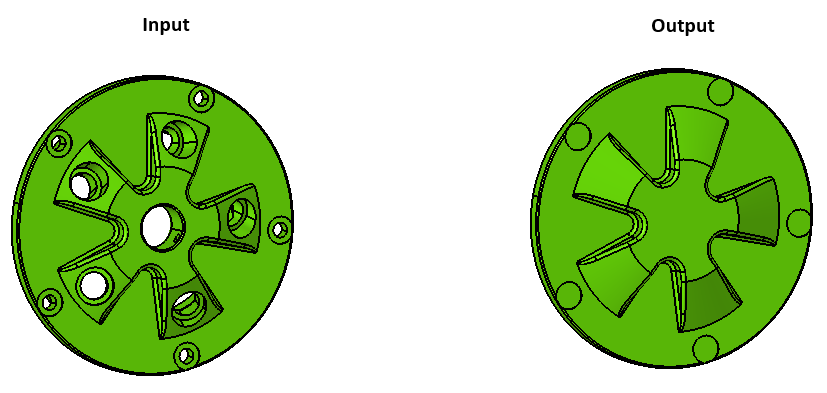

  • Example: All holes
    • Input

    • Output

    • CAD (Parasolid)
