Extract Washer
Dialog Box
This option is used to extract the washer faces in the given FEM body. User can pick a body or set of faces to extract the washer faces.
- Define Washer Range
Select this toggle to define the range by specifying the minimum and maximum radius. Washers in the given range will only be extracted.

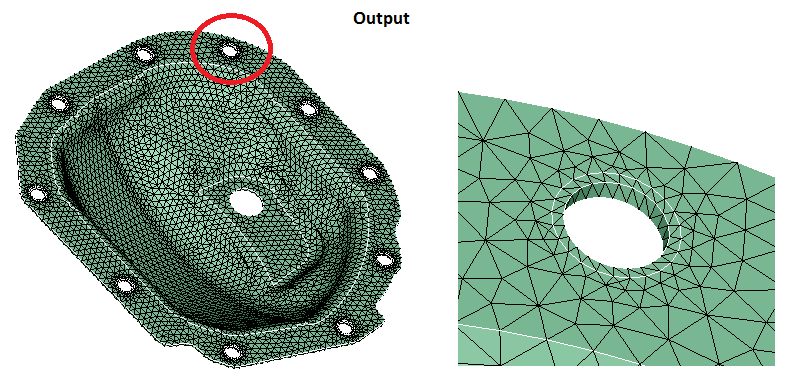

Example
