Three Face MPC

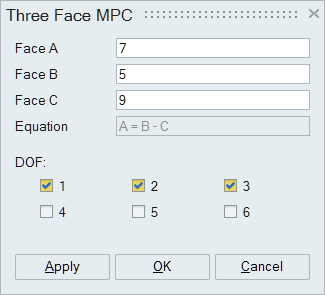

Dialog Box
This tool is used to connect nodes of three faces. Based on the order of face selection the nodes of the three faces will be connected using multi point constraint. The MPC will follow the equation A = B - C.
Cards supported for various solvers
| Solver | Supported Cards |
|---|---|
| Abaqus | *Equation |
