Supplied Conductors AC solution

Solutions > Electromagnetics > Supplied Conductors AC

Introduction

Supplied Conductors AC “SCAC” solution allows the computation of parameters including the impact of non-ideal behaviors (parasitic couplings) within complex structures in electrical engineering and power electronics. This solution makes it possible to calculate the distribution of electrical current within the structure and its connected active and passive components, as well as Joule losses distribution, which can be calculated and displayed..

Note: For more information about the Supplied Conductors AC workflow , please consult:

Frequency definition

Different type of frequency definition are possible:

  • By step value

  • By step number (linear)

  • By step number (logarithmic)

  • By step list

  • By multi interval

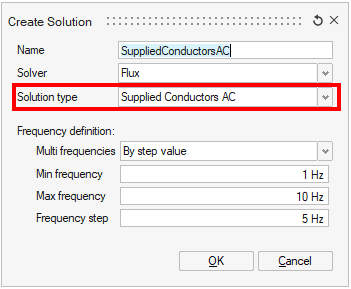

    Click on Define, and choose different intervals with different type of variation possible.

    The list of values is displayed below after to click on Preview

  • By single frequency
