Four Edges

Geometry > Face > Create > Four Edges

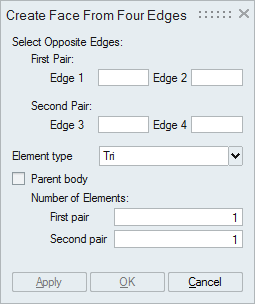

Dialog Box

This tool is used to create a face using four Edges.

• Select Opposite Edges
  • First Pair

    Select first two opposite edges, which are displayed in Edge 1 and Edge 2 respectively.

  • Second Pair

    Select other two opposite edges, which are displayed in Edge 3 and Edge 4 respectively.

• Number of Elements

  Number of elements required in the First Pair and Second Pair of Edges. if zero is given as the input then the number of elements present in the edges will be taken as default.

• Element Type

  Type of element to be created in the new face. Tri and Quad elements are supported. By Default Quad element is in selection.

• Parent Body

  If the parent body option is turned on, the newly created face is added to the parent body; otherwise it will be created in a new body.
