getNormalFromFaceGroup

Overview

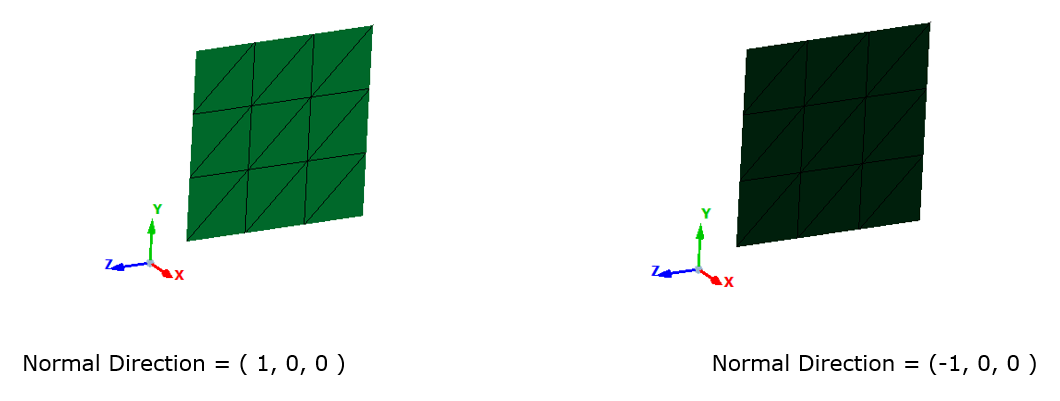

This utility is used to get the normal direction from face group.

Syntax

DirectionPt = simlab.getNormalFromFaceGroup('GroupName')

User Case

• To perform Transform > Translate operation for bodies, faces in script

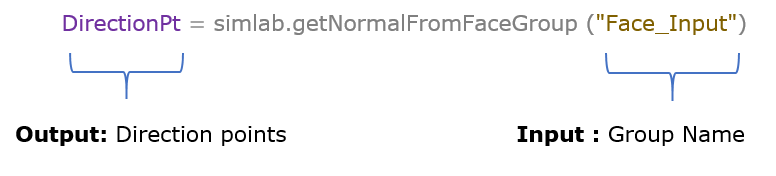

Utility Input/output
