Connect Weld Beads

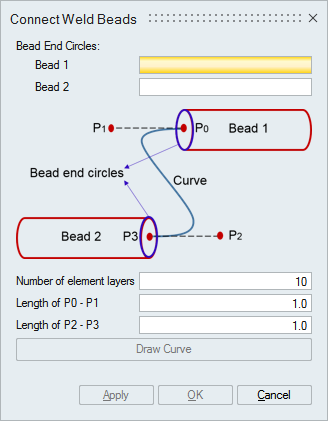

Dialog Box
This tool is used to create connection between two weld beads. Two beads will be connected and merged to single body. The connector will follow the path along a curve. The path of curve can be controlled by defining length of P0-P1 and P2-P3.
- Bead End Circles: End circular edges from bead 1 and bead 2.
- Number of element layers: Number of element layers required in the connection portion.

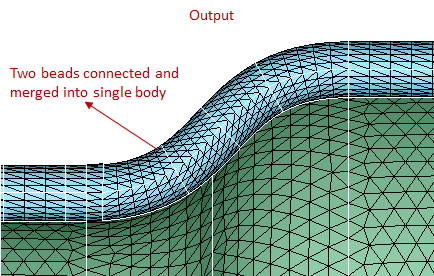

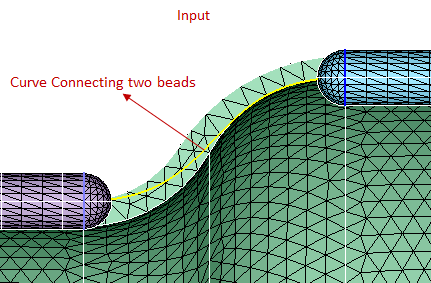

Example
