Map Body Names
Map Body Names

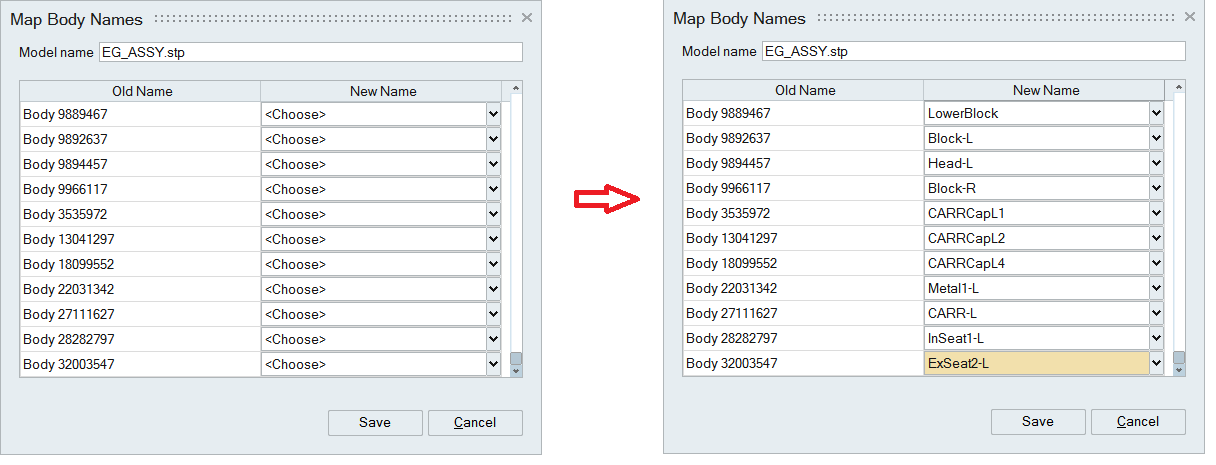

Map Body Names is used to assign a new name to bodies as the new names are used in
scripts. When this option is invoked, "Map Body Names" dialog will open. This will list
the body names in the selected model and a new name is to be assigned. This new name
should be the same name as used in the script file. To help this mapping process, users
can add a file names.dat that contains the list of body names used in the script. These
names will appear in the drop down list in New Name column cells. Once the old names are
associated to a new name, click on Save. This will save Name_mapping.xml file in the
project folder.
After associating the new name to the bodies, select Save in the dialog. It will create an xml file(Name_Mapping.xml) in the project folder.

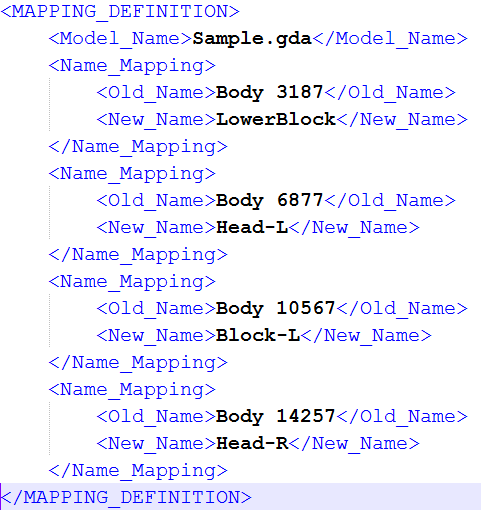

A sample Name_mapping.xml file
