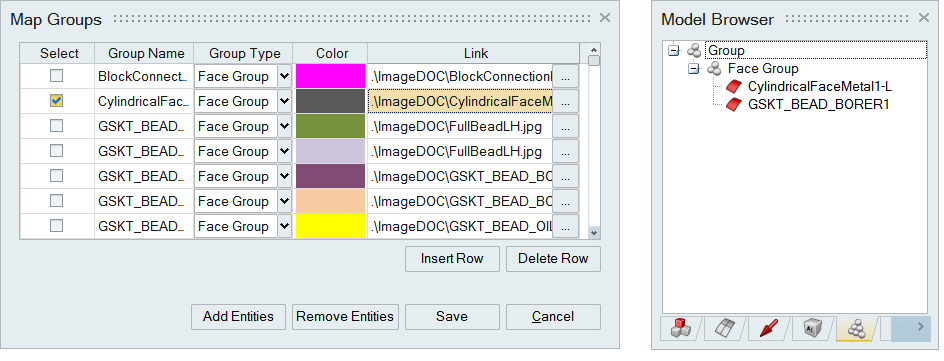

If the Map Groups (GroupTemplate.xml) file is present in the project folder, group name, type and color information automatically gets loaded in Map Groups dialog. User can do the necessary modifications and save the file.

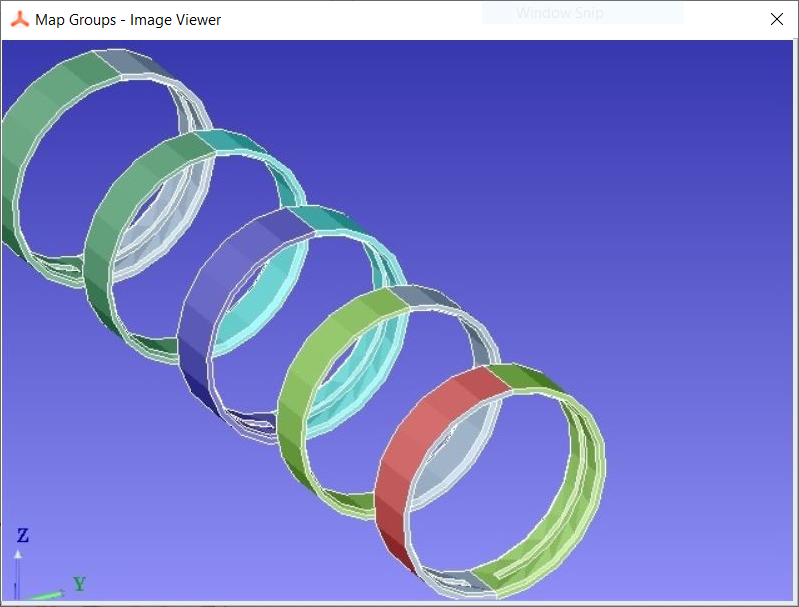

For each row that defines a group, user can link to a image that gives additional information on the group. Double click the link, and the linked document will open in Map Groups - Image Viewer dialog.

Save the group mapping file by selecting Save. The file (GroupTemplate.xml) will be saved in the project folder.

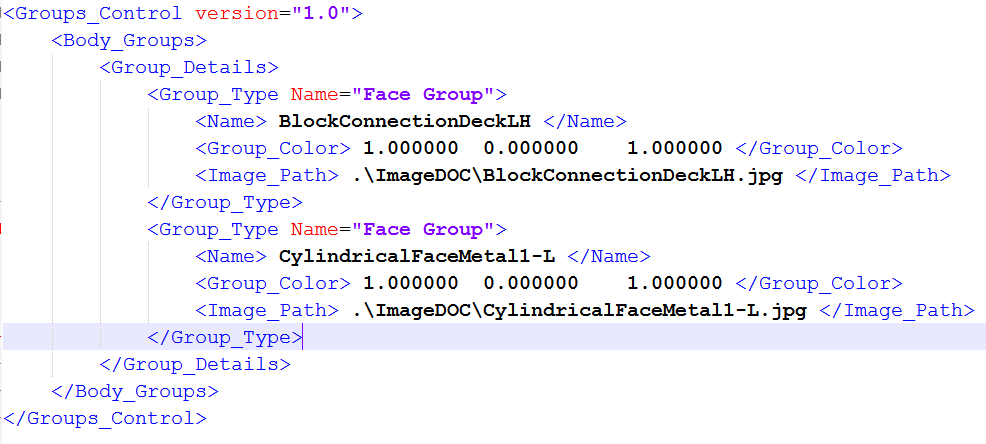

A sample group mapping file

Note: Without selecting the project folder, entities can be mapped to groups by using Map Groups. Click on the Map Groups will ask user to select a group mapping template file(*.xml). Groups information in the *.xml file will be loaded in Map groups dialog and then user can do the necessary modifications.

When Map Groups dialog is opened, Select Features, Select Adjacent Layers, Faces in CAD, Edges by Plane, Select Associated Entities, Edges by plane, Edges by length, Select Adjacent, Faces by Plane, Identical Faces, Show Faces By color and Associated Groups dialogs can be accessed as secondary dialog for face and body selection without closing the Map Groups dialog.
