Gasket Face

Advanced > Gasket > Gasket Face

Dialog Box

Gasket Face is used to create faces from wire body edges. The nodes of the wire body edges will be preserved in the newly created gasket face.

These are the edges which defines the boundary of the gasket face. The boundary faces will be created in a separate body.

These are the edges which defines the bead faces. The bead faces will be created in a separate body. The bead edges will be shared between the boundary and Bead Faces.

Limitations

• Supported only for FEM body.
• Edges should be on the same plane.

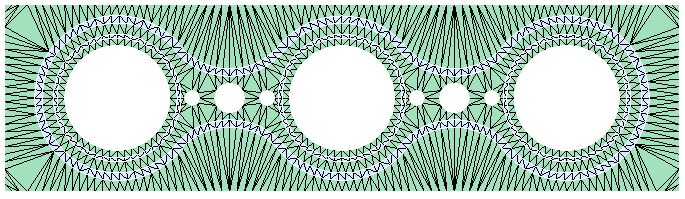

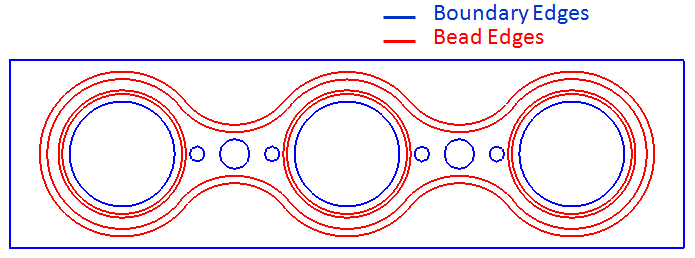

Example
