Underfill Weld

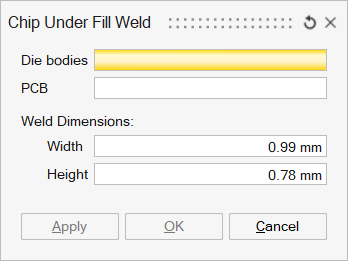

This tool is used to create welds between the PCB and the chips, dies and underfills on top of the PCB. Welds will be defined by the given width and height. This will create congruent mesh between the weld and PCB as well as the underfills, chips and dies. There will be mesh modifications on PCB alone.
Example:Single chip
Input
Ouptut

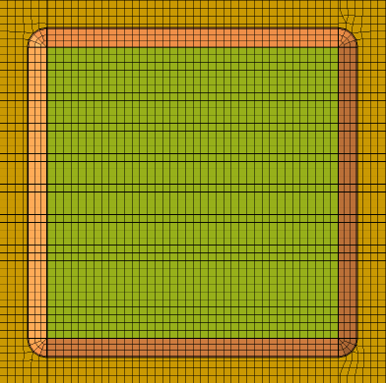

Top view
Example: Multiple chips

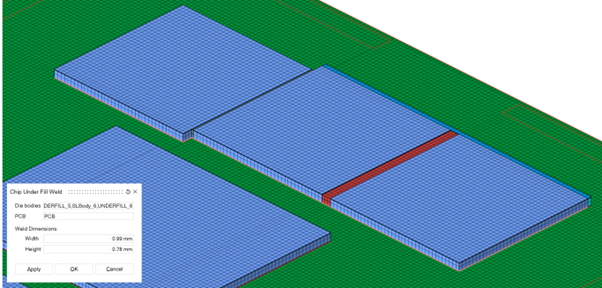

Input

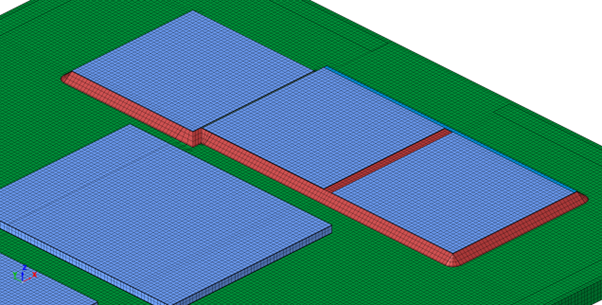

Output

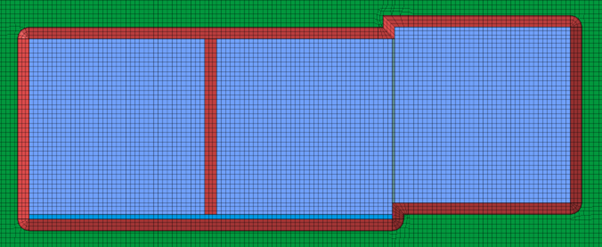

Top view
Note:
- This tool is supported to Cartesian hex mesh PCB bodies only.
- Select the die bodies which are connected to PCB.
