FluxMotor

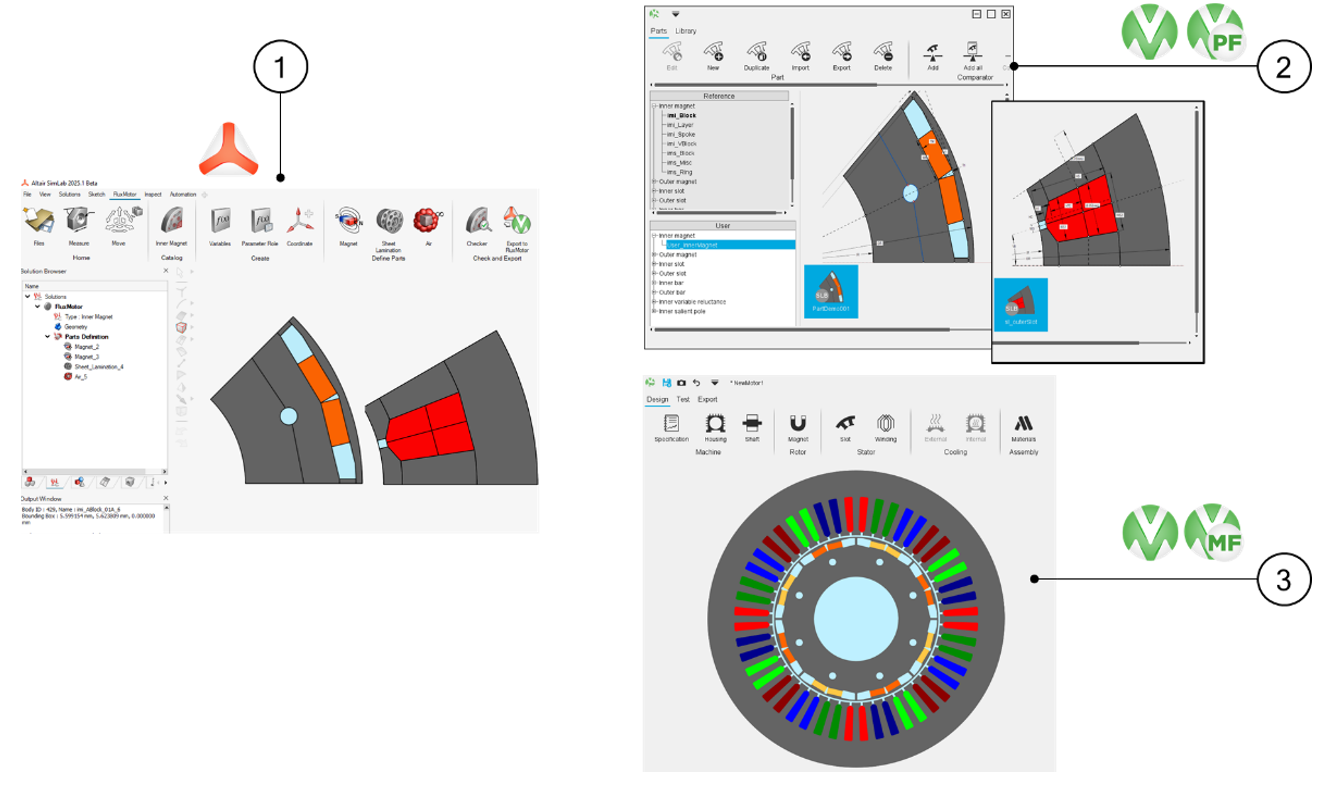

FluxMotor Solution is a dedicated workflow for designing user parts and using them in FluxMotor software.
The main benefit is the Sketcher, which enables users to design and parameterize a part very efficiently.
For more information on the full workflow, please visit FluxMotor.
Note: In the current version, only the Inner
Magnet part and Outer Slot part are
supported in the FluxMotor solution. Other types of parts such as the Inner
Salient Pole will be added to the later versions.
Note: The Inner Magnet part can be
imported to FluxMotor for all types of machines with inner rotor containing
magnets, including:
- 3-Phase / n-Phase synchronous machine with permanent magnets – Inner rotor
Note: The Outer Slot part can be
imported to FluxMotor for all types of machines with inner rotor (in other
words, outer stator), including:
- 3-Phase / n-Phase synchronous machine with permanent magnets – Inner rotor
- 3-Phase reluctance synchronous machine – Inner rotor
- 3-Phase wound field synchronous machine – Inner salient pole – Inner rotor
- 3-Phase induction machine with squirrel cage – Inner rotor
Warning: In SimLab, it is mandatory to
define a global unit system before creating a FluxMotor Solution. Without
a global unit system, the export to FluxMotor is not possible.
A unit system is selected by default (MMKS (mm Kg N C s)). If not, to define the global unit system:
- Activate
- Choose the unit system
For more information on the Unit System, please refer to the main page Unit System.
