Integration
Note: This tool is supported only for Flow Post-Processing
Display.
Use the Integration tool to get integrated quantities on surfaces, solids, slice planes, and iso-surfaces.
From the results ribbon, click the Integration tool.
Select surfaces, solids, slice planes, or iso-surfaces from the post browser.

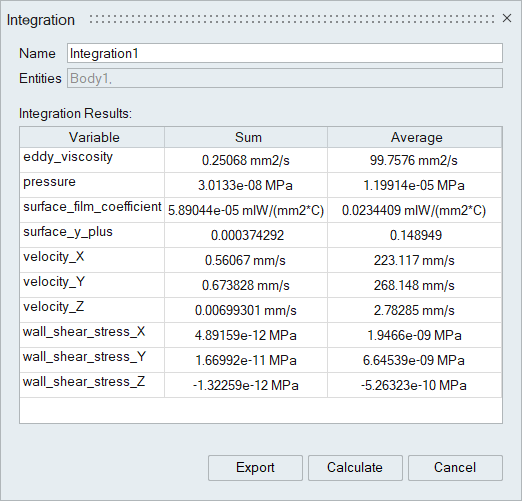

Click Calculate to extract values. A new integration entity is added to the post browser. A table with integral values for all variables computed over the input entities is created. This data can be exported to a text file using the Export option.
To edit the integration input entities, double-click on an integration in the results Browser.
