Break Intersecting Faces

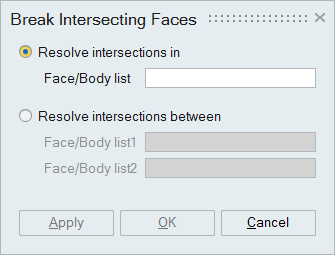

Dialog Box
This tool is used to break the intersecting faces. Supported for both Tri and Quad elements.
Steps
-
Select bodies (or) faces.
- If the "Resolve intersections in" toggle is turned ON, it resolves the intersection in the given bodies/faces.
- If the "Resolve intersections between" toggle is turned ON, it resolves intersection between two set of entities(bodies/faces).
- Click Apply/Ok to resolve the intersection.

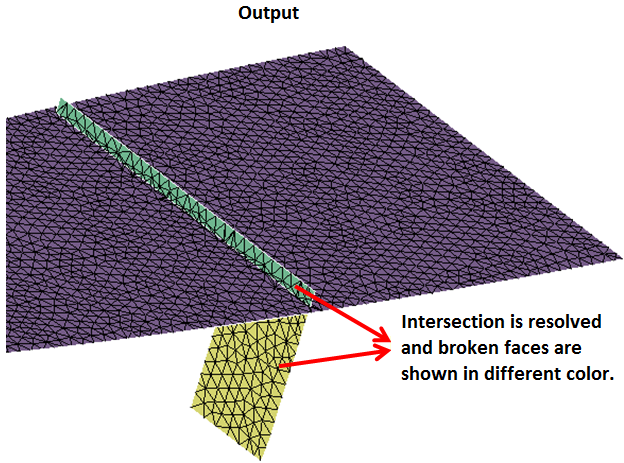

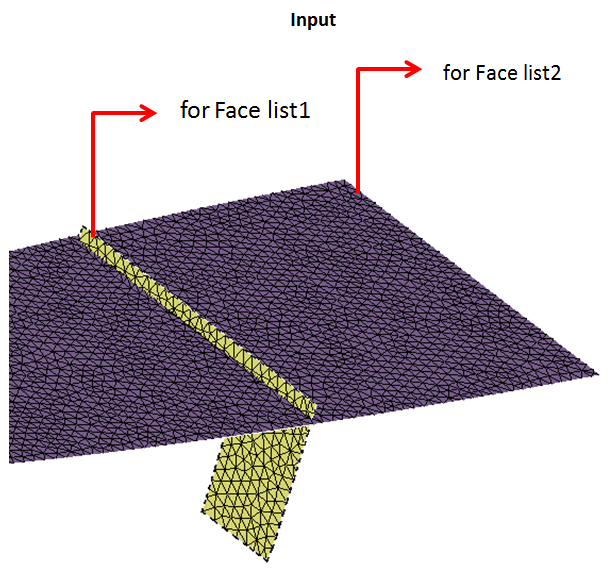

Example
