Midline

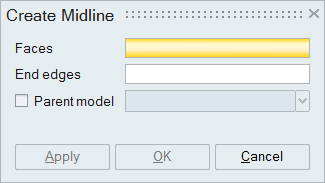

Dialog Box
This tool can be used to extract the midline on a face. The midline is created as a wire body.
- Face
Single face or set of topologically connected faces.
- End edges
Ends (topological edge) of the face.
- Parent Model
By default, the wire body (midline) is created in a new model. We can use this option to create the wire body in a specific model.

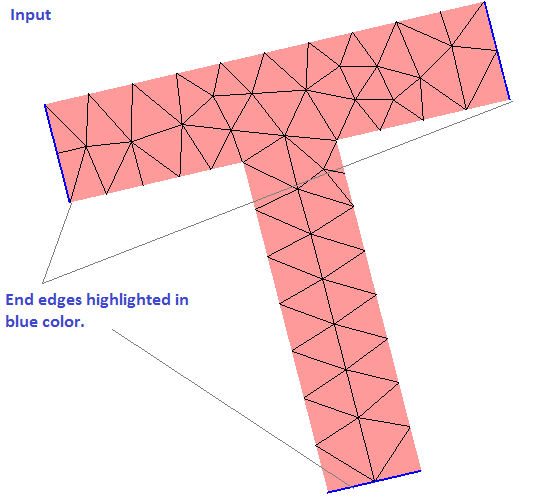

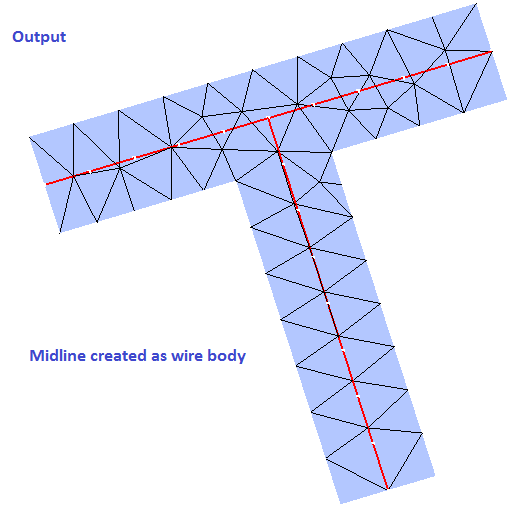

Example
