Modify Water Jacket

Advanced > Power Train > Engine Modeling > Modify Water Jacket

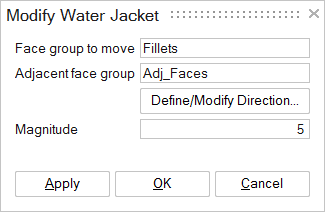

It enables user to prepare model to do an optimization study by changing the height of the water jacket in an engine block. The group of faces selected will be moved based on the direction and magnitude. User needs to input the group of faces to move and the group of adjacent faces.

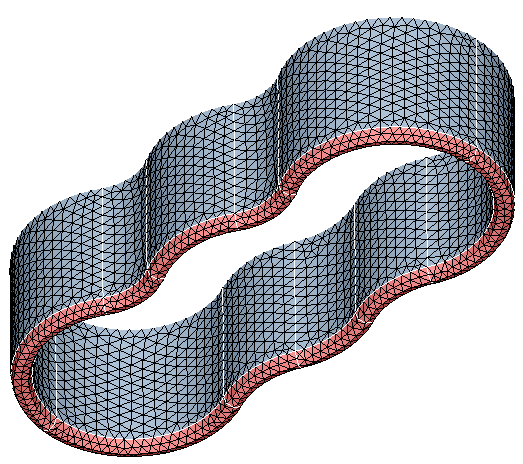

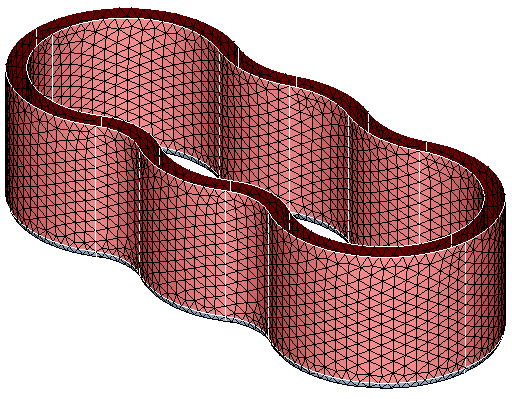

Face group to move	Adjacent face group

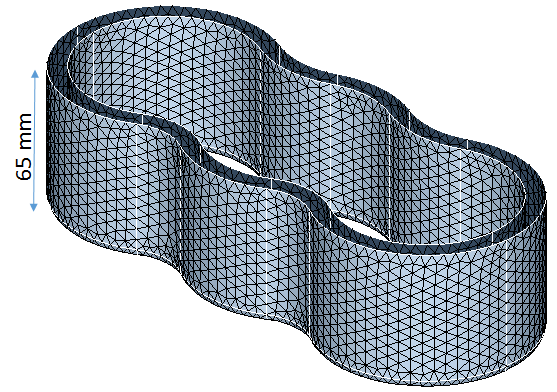

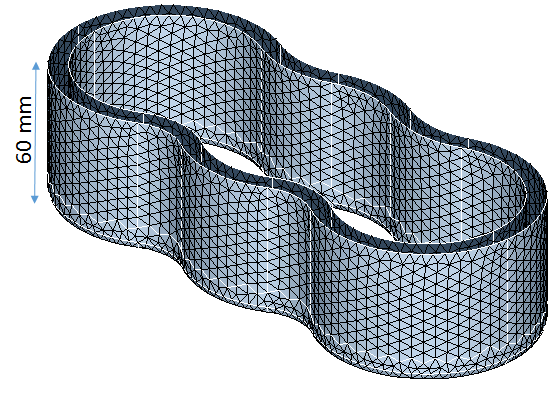

Before modification	After modification
