Equation

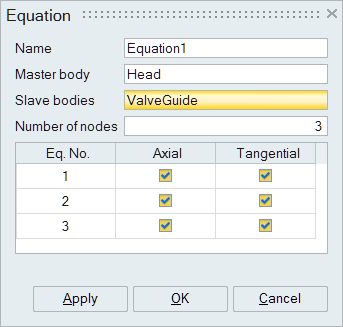

Dialog Box
This tool is used to create multi point constraint between cylindrical contact pairs. The number of MPC's and their tangential and axial DOF can be controlled as required. The MPC created will be based on a cylindrical coordinate system.
Cards supported for various solvers
| Solver | Supported Cards |
|---|---|
| Nastran / OptiStruct | MPC |
| Abaqus | *Equation |
