Enforced Displacement
This tool is used to define enforced translational and rotational displacement constraints.
Description
- Enforced constraints can be applied on nodes / faces / edges.
- The enforced constraint can be defined with respect to a local coordinate system.
- Varying enforced displacement constraints can be defined by using
displacement table. We can import table data using a text file with data
separated by comma or space.
Sample Format:
-52.500000 ,-21.650640 ,10.000000 ,0.022707 ,-0.1572 ,0.005875 ,0.0000 ,0.0000 ,0.0000
32.500000 ,-12.990380 ,0.000000 ,-0.12203 ,-0.1685 ,0.005925 ,0.0000 ,0.0000 ,0.0000
-27.500000 ,-21.650631 ,10.000000 ,0.218088 ,-0.1875 ,0.005855 ,0.0000 ,0.0000 ,0.0000
Cards supported for various solvers
| Solver | Supported Cards |
|---|---|
| OptiStruct / Nastran |
SPCD, SPC1, SPCADD TABLED1, DLOAD, TLOAD1 {if Amplitude table is defined} |
| Abaqus | *BOUNDARY,*AMPLITUDE |
| Permas | $PRESCRIBE, $PREVAL |
| Ansys | D |
| ADVENTURECluster | $ForcedDisplacement |
| RADIOSS | /IMPDISP |

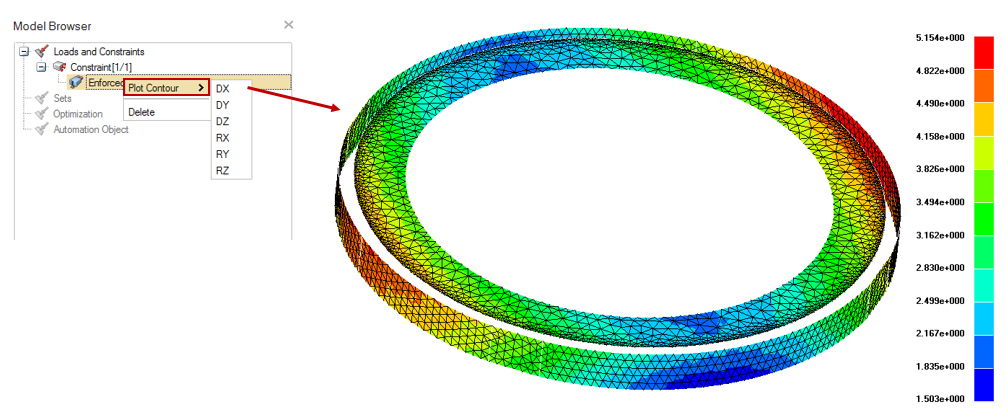

In case of varying enforced displacement constraints, contour plot can be visualized by using the Plot Contour option as shown below.
