Flux
This tool is used to define a surface heat flux load.

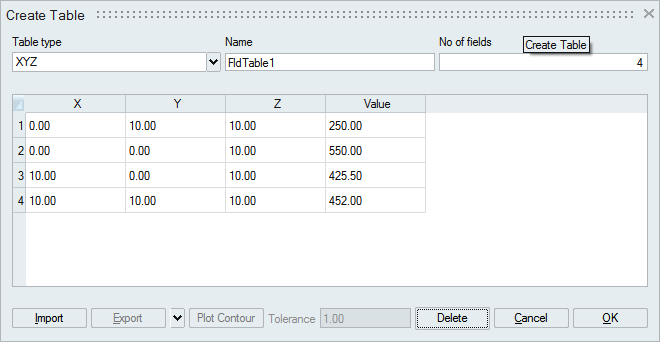

- Distributed heat flux table option is used to apply a
spatially varying heat flux load. An external file containing the spatial
data of the format X,Y,Z,HeatFluxValue can be imported.
Cards supported for various solvers
| Solver | Supported Cards |
|---|---|
| OptiStruct |
QBDY1,CHBDYE TLOAD1, DLOAD, TABLED1 - Transient HT |
| Nastran | QBDY1 |
| Abaqus | *DSFLUX,*DFLUX |
| Permas | $DISLOAD SURFHS,$DISLOAD SURFHSS |
| Ansys | SFE |
