Analytical Surface
This tool is used to define analytical surface for abaqus and ADVC. Extrude and revolve type are supported.
Surface Profile: Sketch can be defined on sketching plane using line or arc option with the help of nodes.

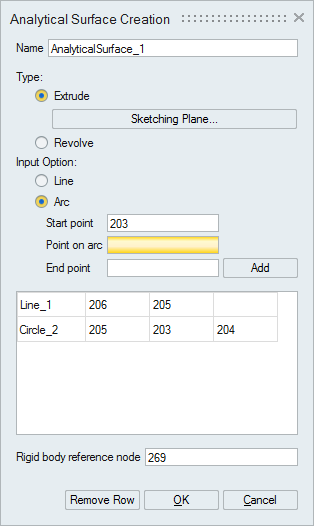

- Extrude: Used to define analytical surface profile
for extrude type based on the sketch.

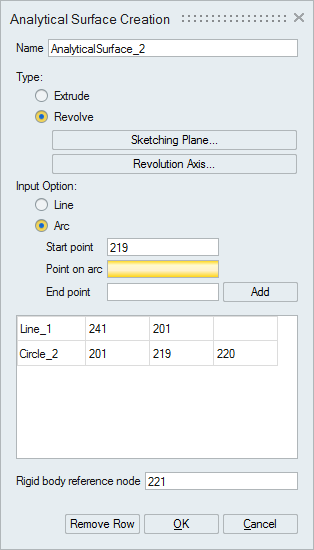

- Revolve: Used to define analytical surface profile
for revolve type based on the sketch and revolution axis.
Cards supported for various solvers
| Solver | Supported Cards |
|---|---|
| Abaqus |
*Surface, TYPE=CYLINDER *Surface, TYPE=REVOLUTION *RIGID BODY, REF NODE={Node id}, ANALYTICAL SURFACE = {analytical surface name} |
| ADVC |
$AnalyticalSurface TYPE=Extrusion $AnalyticalSurface TYPE=AxialSymmetry $RigidBodySurfaceList reference_node={Node id} sid = {analytical surface ID} |
