Volume Decompose
This tool can be used to decompose the input bodies into Hex Meshable volumes. This tool is supported for both CAD and FEM bodies.
Note: For Parasolid models imported with the Save geometry in
database option, the output bodies will be created as a Parasolid. For other CAD
inputs, the output bodies will be converted to facets.
Example

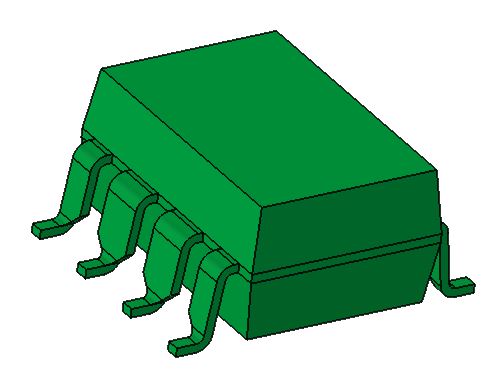

Input

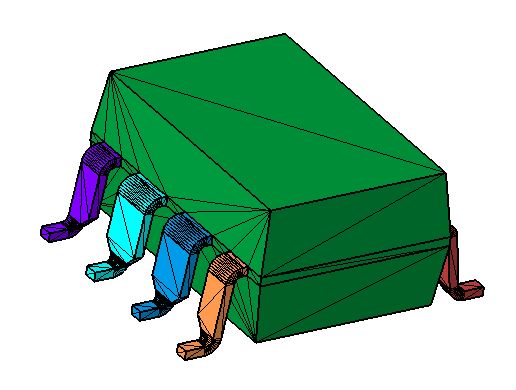

Output
Note: Defeature the fillets and other unwanted details before
volume decompose.
