Defining an Optimisation Search

Add an optimisation search to maximise the maximum gain in the azimuth direction.

On the Request tab, in the Optimisation group, click the Add Search icon.
On the Create Optimisation Search dialog, set the Optimisation convergence accuracy to Normal (default).
Click Create to create the new optimisation search and to close the dialog.

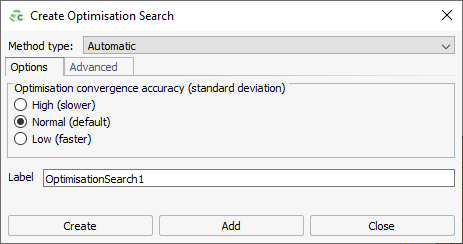

Figure 1. The Create Optimisation Search dialog.
