Configuration Tab

The Configuration tab contains the global and configuration-specific model settings and requests of the current model in tree form.

The tree contains a Definitions branch, Global branch and Configuration specific branch.

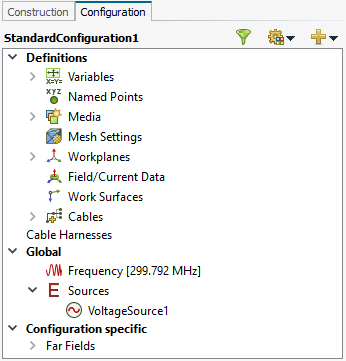

Figure 1. The Configuration tab in the model tree.

Definitions Branch: The Definitions branch contains by default the predefined variables, named points, media, mesh settings, workplanes, field/current data, work surfaces and cables.

Global Branch: The Global branch contains the global specific model settings. From the right-click context menu define solver settings, specify the global frequency, sources, loads, networks and power.

Configuration specific Branch: The Configuration specific branch contains configuration specific settings. From the right-click context menu define requests per configuration, frequency per configuration, sources per configuration, loads per configuration and power per configuration.
