Export
How to export a library?

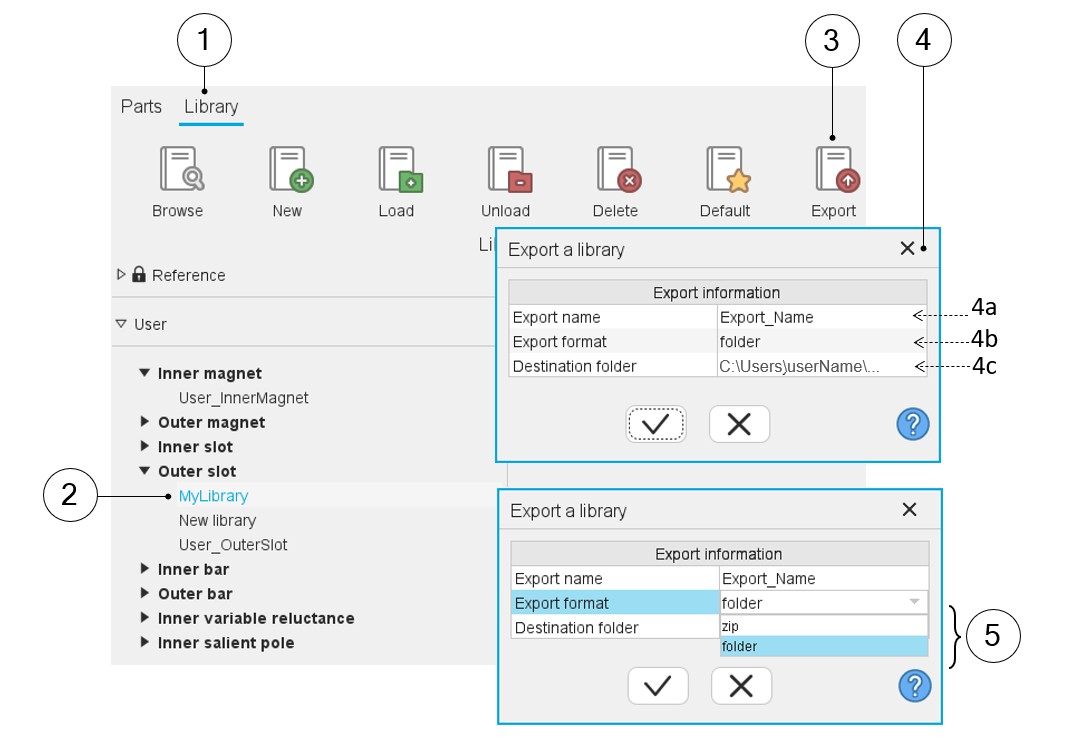

How to export a library is illustrated below.
 |
|
|---|---|
| 1 | Selection of the library area of the Part Library application. |
| 2 | Selection of the library to export. |
| 3 | Button to Export the selected library. |
| 4 | Dialog box to provide information for exporting the selected library. |
| 4a | Name given to the exported library |
| 4b | Format in which the library will be stored (zip or folder) |
| 4c | Folder in which the exported library will be stored. |
| 5 | The export format can be either a zip file or a folder. |
