Swap Edge

Mesh > Modify > By Element > Swap Edge

Description

This option is used to swap an element edge between elements.

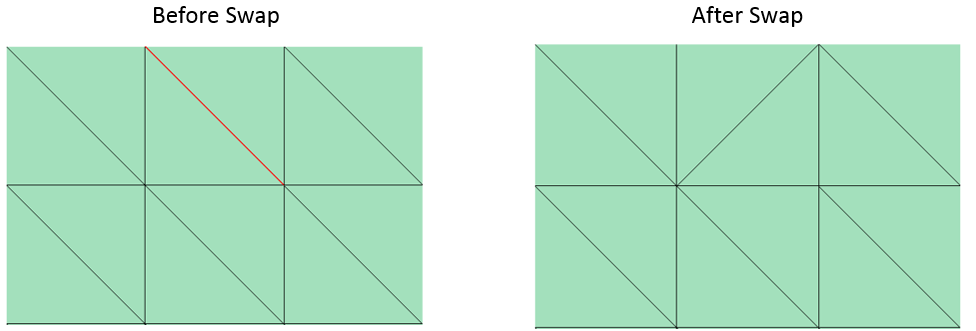

Example

Automatic Option

Turn ON this toggle to proceed the process automatically after picking the entity. Selecting the element edge will automatically swap the element edge.

Note:
  • Topological Edges should not be Swapped.
  • Back-back elements formed during swap are resolved automatically.
