Identify Thin Regions
Dialog Box
This is used to extract the thin regions in a face or wire bodies. Once the thin regions are extracted, we can expect a good mesh at those regions when we do meshing.
Example

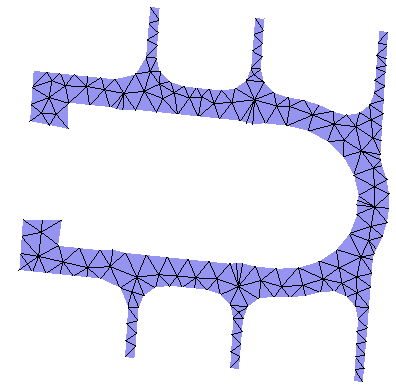

Input Faces
Output

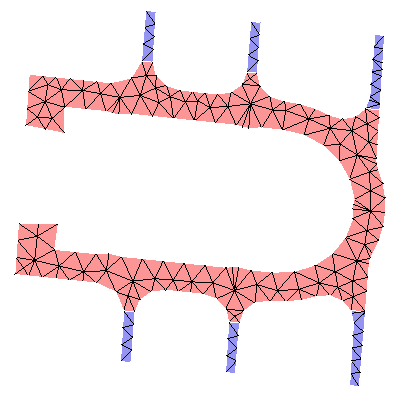

The thin regions in the face are extracted so that we have lines at the ends.

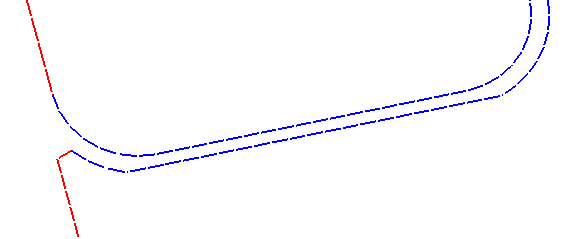

Input Wire Body
Output

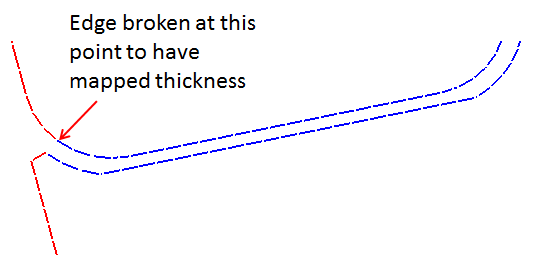

The thin regions in the body are extracted, you can see the edge got broken so that while filling the wire body you can expect mapped mesh.
