Rigid Bar

Analysis > Connectors > Rigid Bar

This tool is used to create Rigid bar elements.

Example

  1. Using Two Bodies (RBE/BAR)

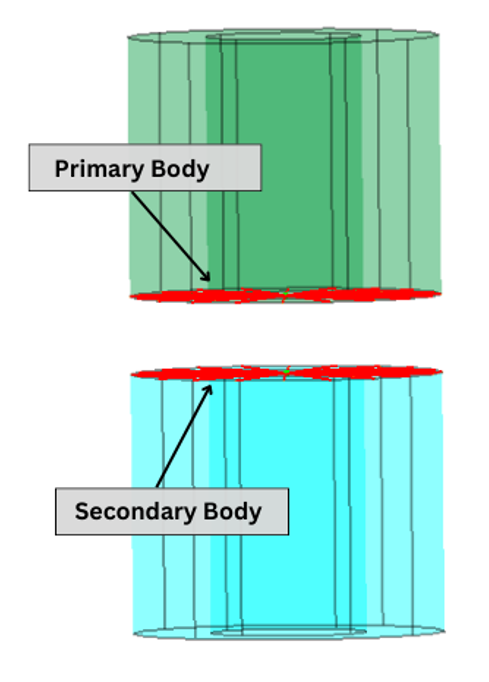

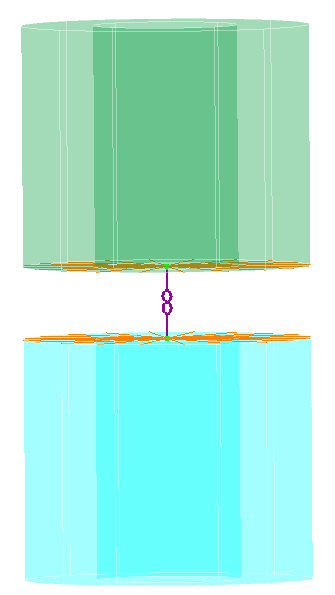

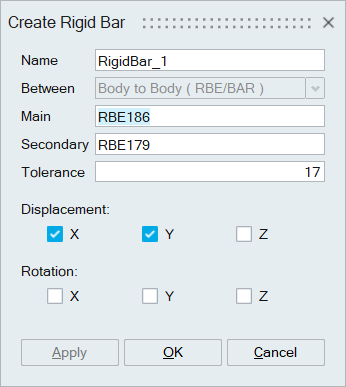

    Using Two Bodies (RBE/BAR)
  2. Using All Bodies (RBE/BAR)

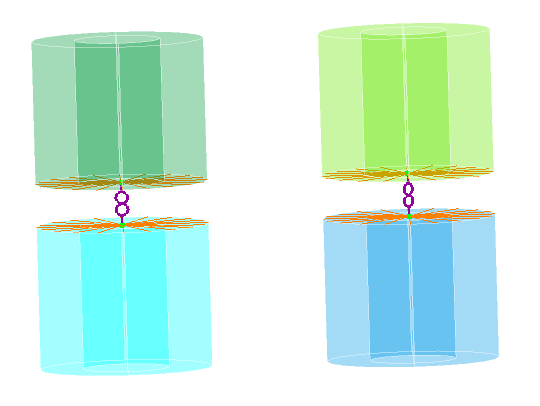

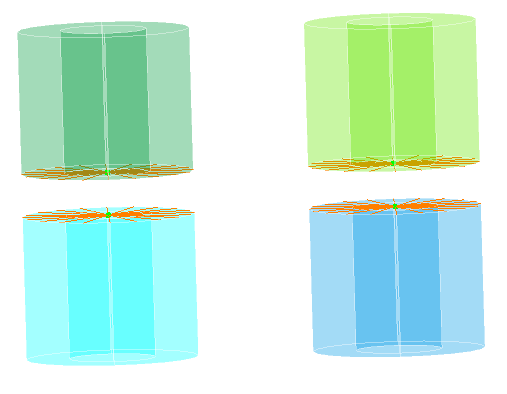

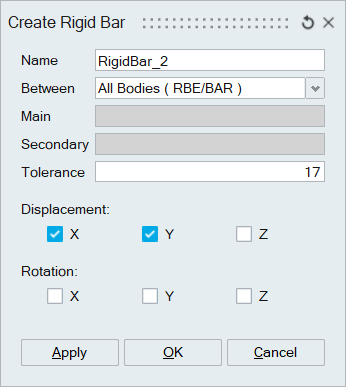

    Using All Bodies (RBE/BAR)

Cards supported for various solvers

Solver Supported Cards
Nastran/OptiStruct RBAR
Abaqus *MPC (Beam elements)
Ansys CERIG, CP
Note: Tolerance is exposed only for the Two Bodies (RBE/BAR) and All Bodies (RBE/BAR) option.
