Interactive Play

Advanced > Session > Interactive Play

• This option is used to play each functionality in step by step mode.



• The input for this is an xml file which has the list of functionalities in the form of a domnode.

• The dialog caption is always the name of the script file.

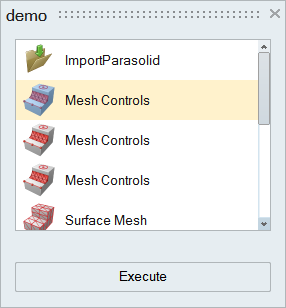

• The dialog lists the functionalities in order by using the icon and the tooltip.

• When user click on Execute , it executes in step by step.

• User can skip some of them by clicking on which item they wanted to execute and click on execute button.

• User can also repeat some of them by clicking on same item multiple times and they can click on execute button.

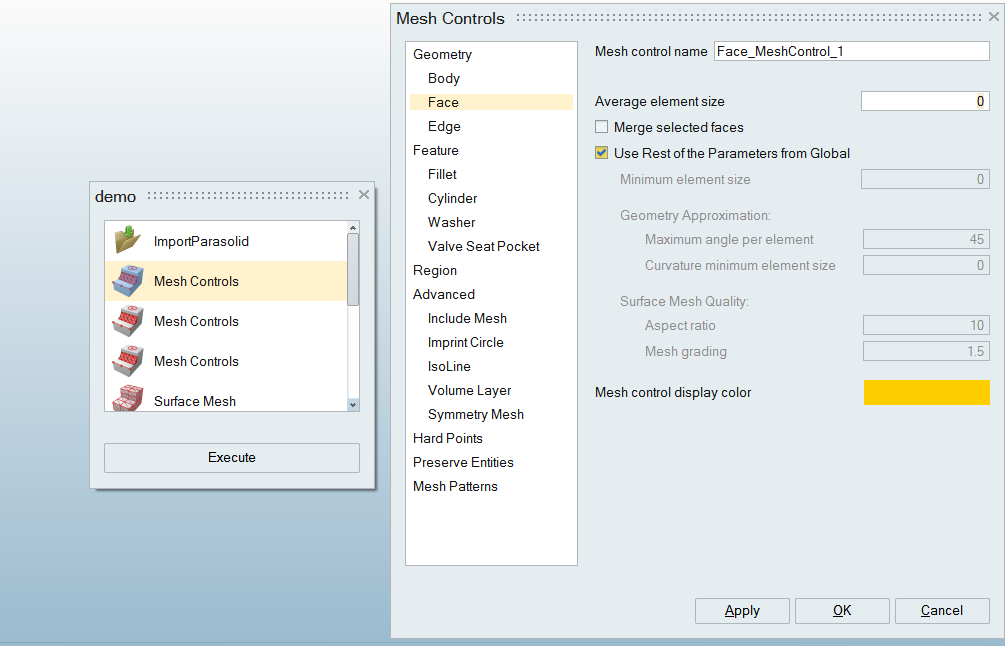

• When user double click on a particular item, it opens the specific dialog.

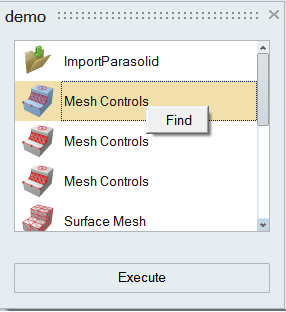

• Right click on the item has the option to find the specific tool availability in corresponding workbench.
