Component Rename

Electronics > PCB > Component Rename

Description

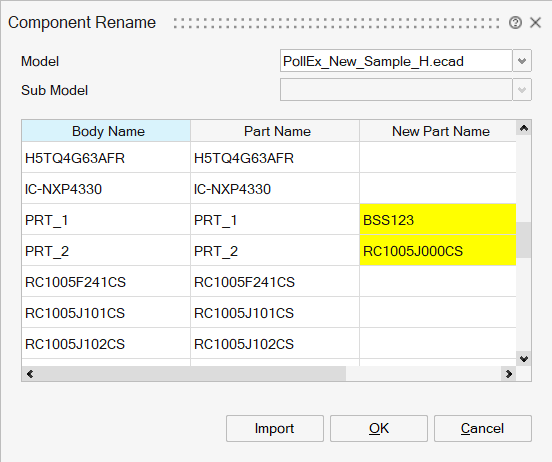

This tool is useful when the user needs to rename the part names of the components with the standard library part name.

Import

Users can either type in the new part name or can import a csv file consisting of existing part names and new part names and click on OK to rename the parts.

Sample csv file format:
