Auto Sweep

Mesh > 3D Mesh > Hex > Auto Sweep

Auto Sweep

This tool is used to generate Hex mesh for Swept bodies automatically. User can select either CAD/ FEM bodies and specify the average and minimum element size for meshing.

Select Top/ Bottom Faces

This option is used to identify the top/ bottom faces for the input bodies. Turning ON Auto option will identify the faces automatically as we select the bodies. User can also pick the top/ bottom faces manually.

Allow quad mesh transition

This option generates quad mesh with transition. For more details please refer Allow Quad Mesh Transition.

Auto sweep output option for different inputs
  • FE Body: The output mesh will be created in a new model.

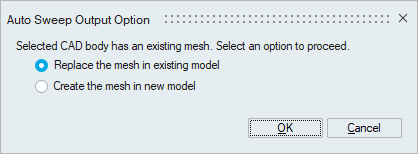

  • CAD Body: The below dialog will prompt the user to select the output location if an equivalent mesh is already present. For more details, please refer Mesh output options for CAD body.

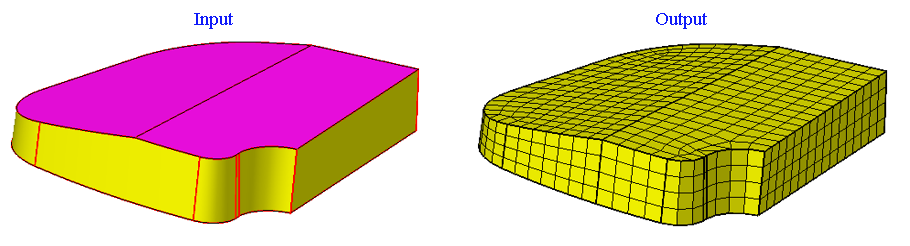

Example
