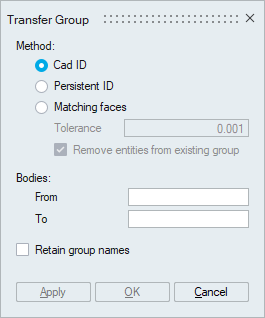

The group information in CAD bodies can be transferred to its FEM bodies to facilitate the user to use those group information for applying loads and boundary conditions. Similarly the group information of FEM bodies can be transferred to its design variant having change in mesh specification and design parameters.
Cad ID
Groups will be transferred based on Cad ID.Persistent ID
Groups will be transferred based on persistent ID.Matching faces
Groups will be transferred based on matching / identical entities between source and destination bodies. If Remove entities from existing group toggle is ON, it will remove entities from source group. By default this toggle is ON.Retain group names
If the toggle is ON, the group created for destination bodies gets assigned with the source group name. The source group name suffixed with _Old.
