Pole

Pole physical properties

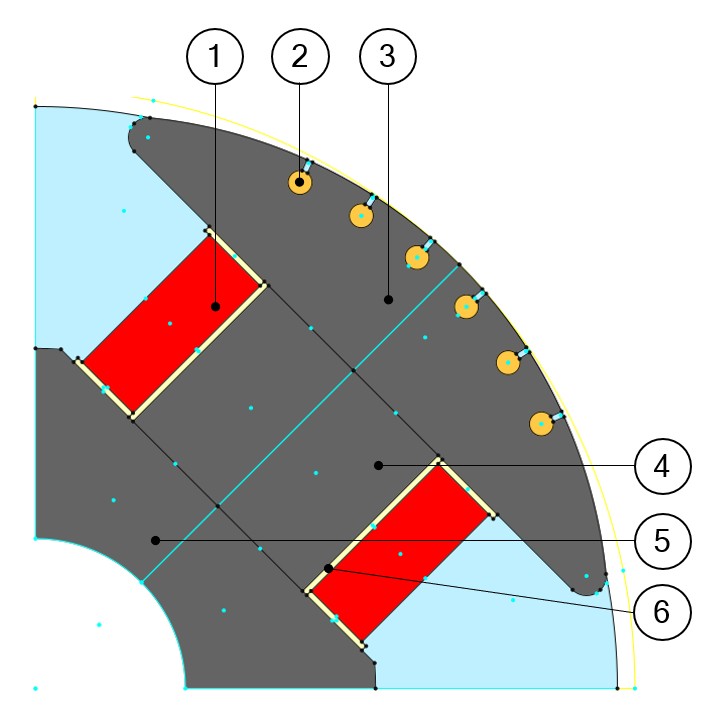

1. Example for an inner salient pole

   Here is an example of regions in inner salient pole.

   Table 1. Regions for inner salient pole

   1	Coil conductor
   2	Solid Conductor
   3	Pole shoe
   4	Pole body
   5	Yoke
   6	Pole insulation

2. List of possible elementary regions for an inner salient pole.
   • Coil conductor
   • Solid Conductor
   • Pole shoe
   • Pole body
   • Yoke
   • Pole insulation
   • Mechanical device to represent rivet for example.
   • Ferromagnetic wedge
   • Hole or Slit
   • Cooling hole
