Planar Quad Mesh
Description
This tool is used to generate quad mesh for planar surfaces.
Bodies/ Faces
Users can select either CAD/ FEM bodies or faces as input. All the faces within the body should be on the same plane.
Average element size
Defines the average element edge length for the mesh on the surface.
Minimum element size
The mesh will have no elements with an edge length smaller than the minimum element size.
Local re-mesh
This option is available only for FEM face input. It lets users re-mesh certain parts of a meshed body while keeping the rest of the mesh as it is. It will be helpful when users want to update the mesh only in specific areas.
Preserve boundary edges
This option will be enabled only if Local re-mesh option is ON. For more details, please refer Preserve boundary edges.
Example

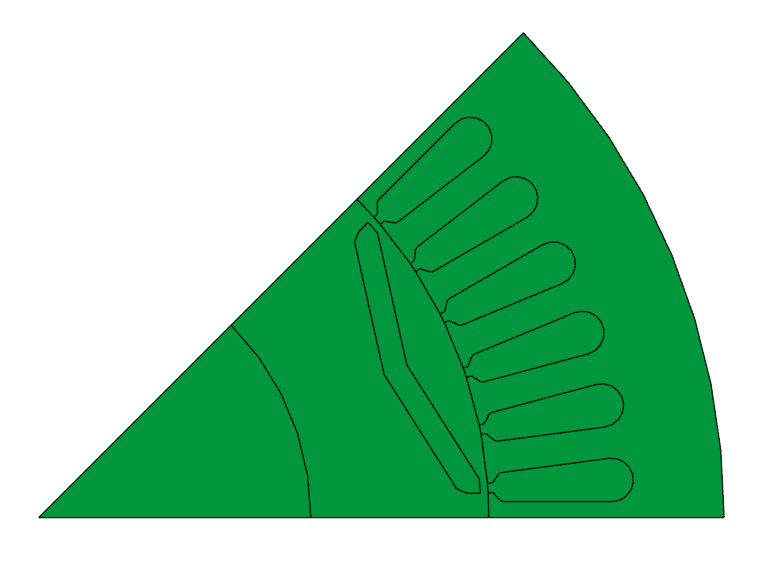

Input

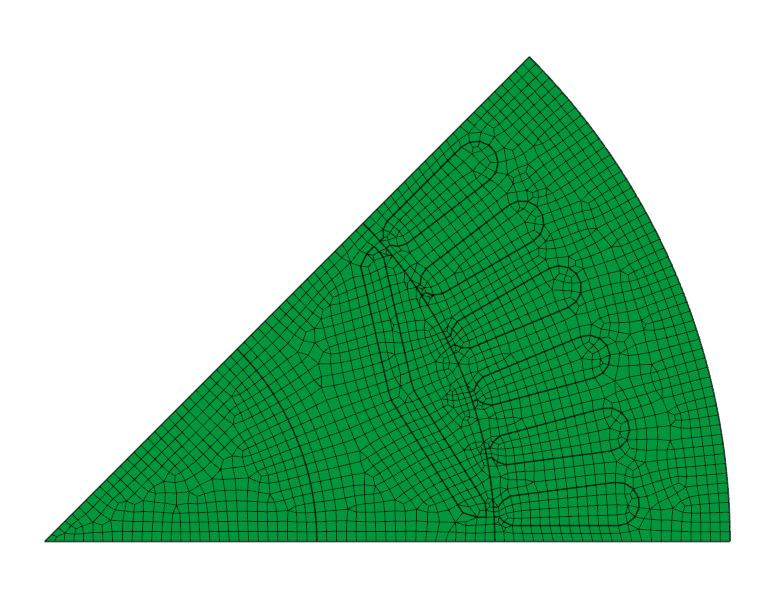

Output
