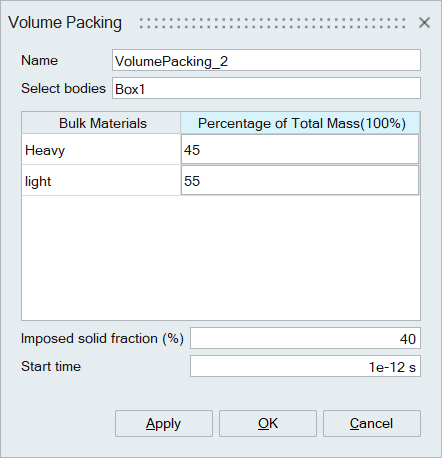

Volume Packing
The Volume Packing tool is used to fill a geometry with particles. The process of achieving this is to generate the required number of particles to satisfy the solid fraction and then iteratively rearrange the particles to remove overlaps between the overlapped particles and particles overlapping the geometry.
Specify the Bulk Materials and Percentage:
- Specify the percentage of each bulk materials to be fill in the selected geometry.
- Bulk Materials in the selected EDEM material file will automatically list here.
Imposed solid fraction:
- The option used to specify the percentage of solid fraction.
Start time:
- This option used to specify the start time for particle filling.
