Parameter Role

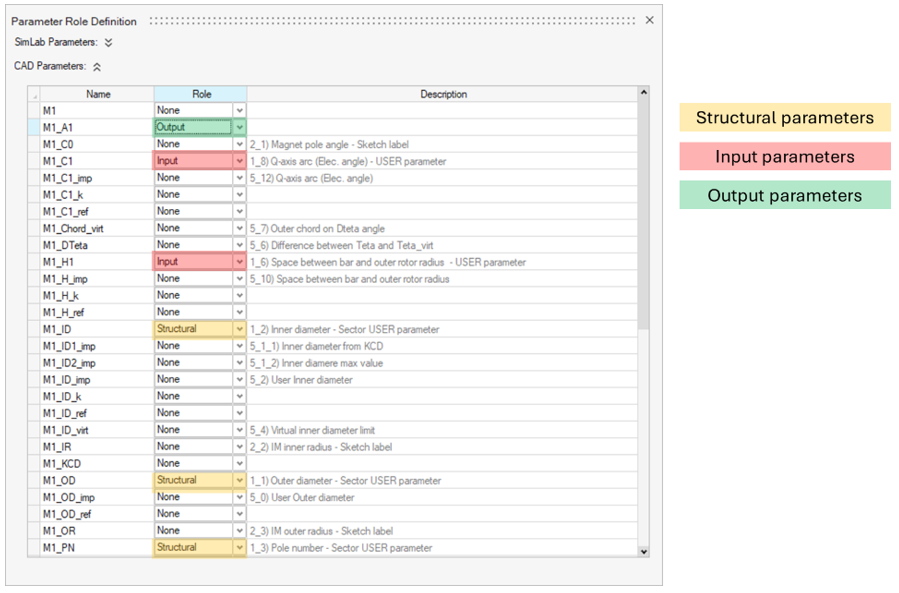

Defines parameter roles for compatibility with FluxMotor. Parameter types include:

  • Structural: Mandatory for compatibility. The required parameters are:

    • ID: Inner diameter of the rotor or magnet part
    • OD: Outer diameter of the rotor or magnet part
    • PN: Number of rotor poles or part repetitions in the rotor
  • Input: Necessary for parametric studies in FluxMotor and HyperStudy.
  • Output: Calculated and displayed in FluxMotor; useful for tracking metrics like total magnet area.
  • None: Intermediate parameters used only in formulas; not displayed or adjustable for parametric studies.

Upon assignment completion, close the dialog box to automatically apply changes.
