Part creation workflow

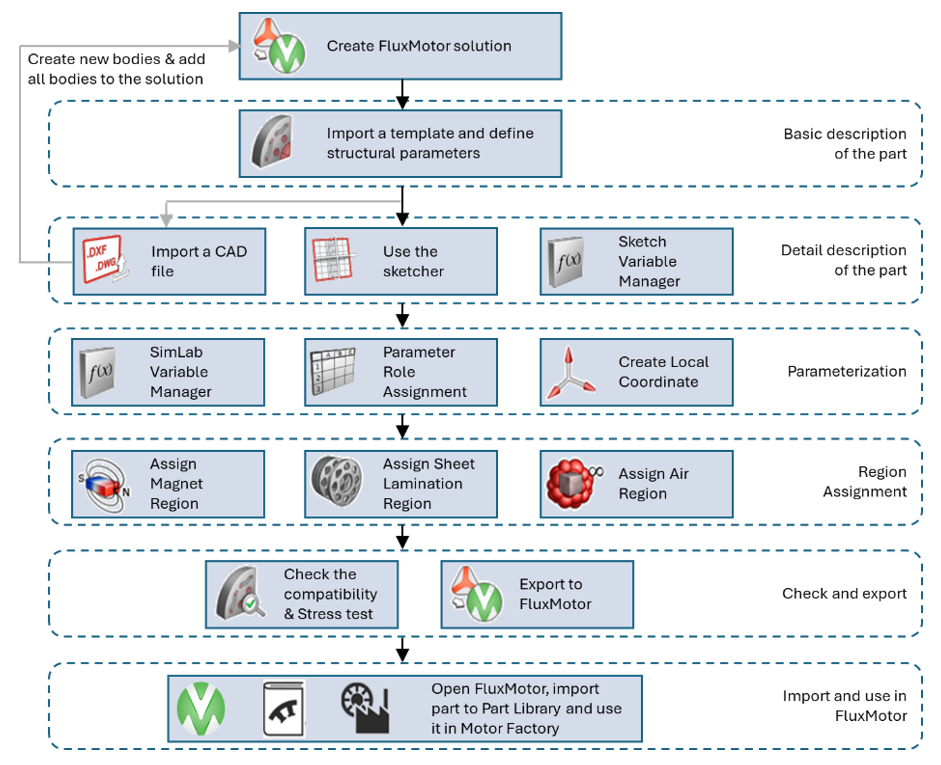

A graphic view of the FluxMotor workflow with Inner Magnet as an example is presented below.

All functions are available in the different ribbon bars:
  • FluxMotor: main functions of the solution
  • Sketch: edit the sketch and add parameters
  • File: Import Database / CAD / Sketch


Users also need to play with browser panels. The two most important browsers are:
  • Assembly browser: to manage the sketches and bodies
  • Solution browser: to select the type of part and bodies assigned to the FluxMotor solution

The workflow is completed by the import and usage action in FluxMotor Part Library and FluxMotor Motor Factory.
