Create Entities

Add entities to the model.

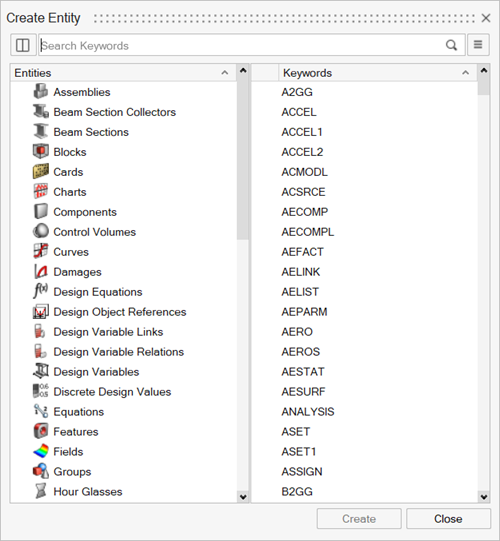

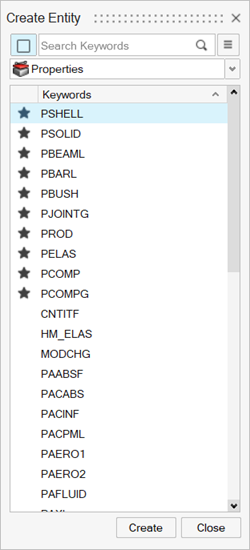

  1. Do one of the following:
    • Click in an entity view browser.
    • Right-click in empty space in a browser and select Create > <entity> from the context menu.
    • Right-click on a parent level entity folder in a browser and select Create from the context menu.
    • Set an entity selector to the desired type, then right-click in the modeling window and select Create <entity> from the context menu.
      Note: Not available for all entity types.

      (HyperMesh only)

    • Select a tool used to create entities on a ribbon.
    The entity is created and assigned a default name, ID, and color.
  2. Define the entity's parameters.
