Change Remote Desktops Quality Settings
Change the remote desktops quality settings by changing the frames per second and bitrate.
By default, the remote desktops quality setting is set to auto adjust based on the client system for better performance.
-
Click the Desktops tab located in the upper left-hand of
the page.
Remote Desktops list is displayed.
Figure 1. Remote Desktops List
-
Click Connect.
Figure 2. Remote Desktops Connect
Note: By default, the timeout interval when a remote desktops is opened is set to unlimited. The default configured timeout value is set to 120 minutes (2 hours) for a remote desktops and it is displayed in the remote desktops tile. Time out will start when the remote desktops is closed, and the remaining time is displayed in the remote desktops tile.A remote desktops of the interactive application is opened in a new window.Figure 3. Opened Remote Desktops
-
Click
to view the remote desktops
options.

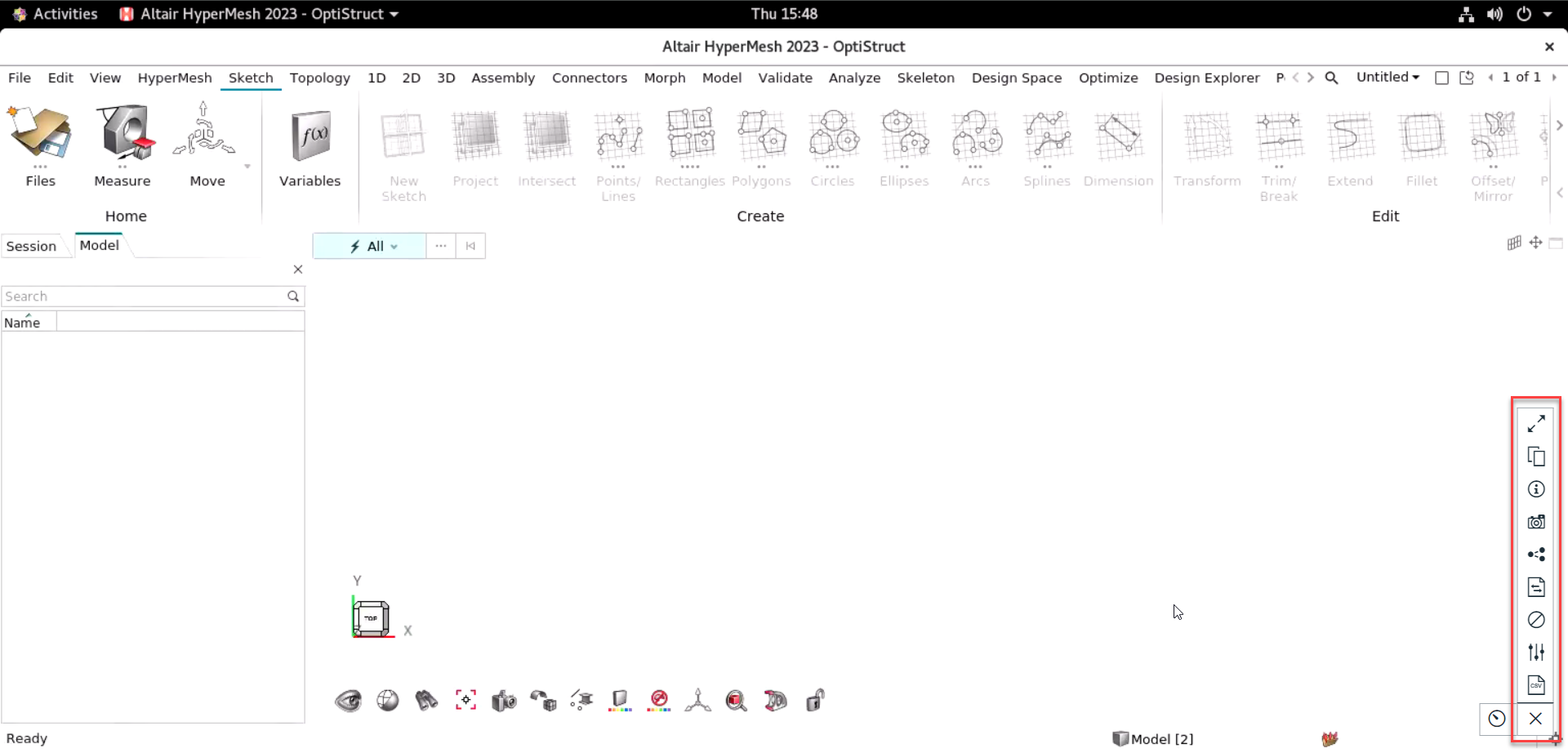

Figure 4. Remote Desktops Control Options
The remote desktops control options are displayed.Figure 5. Remote Desktops Control Options
-

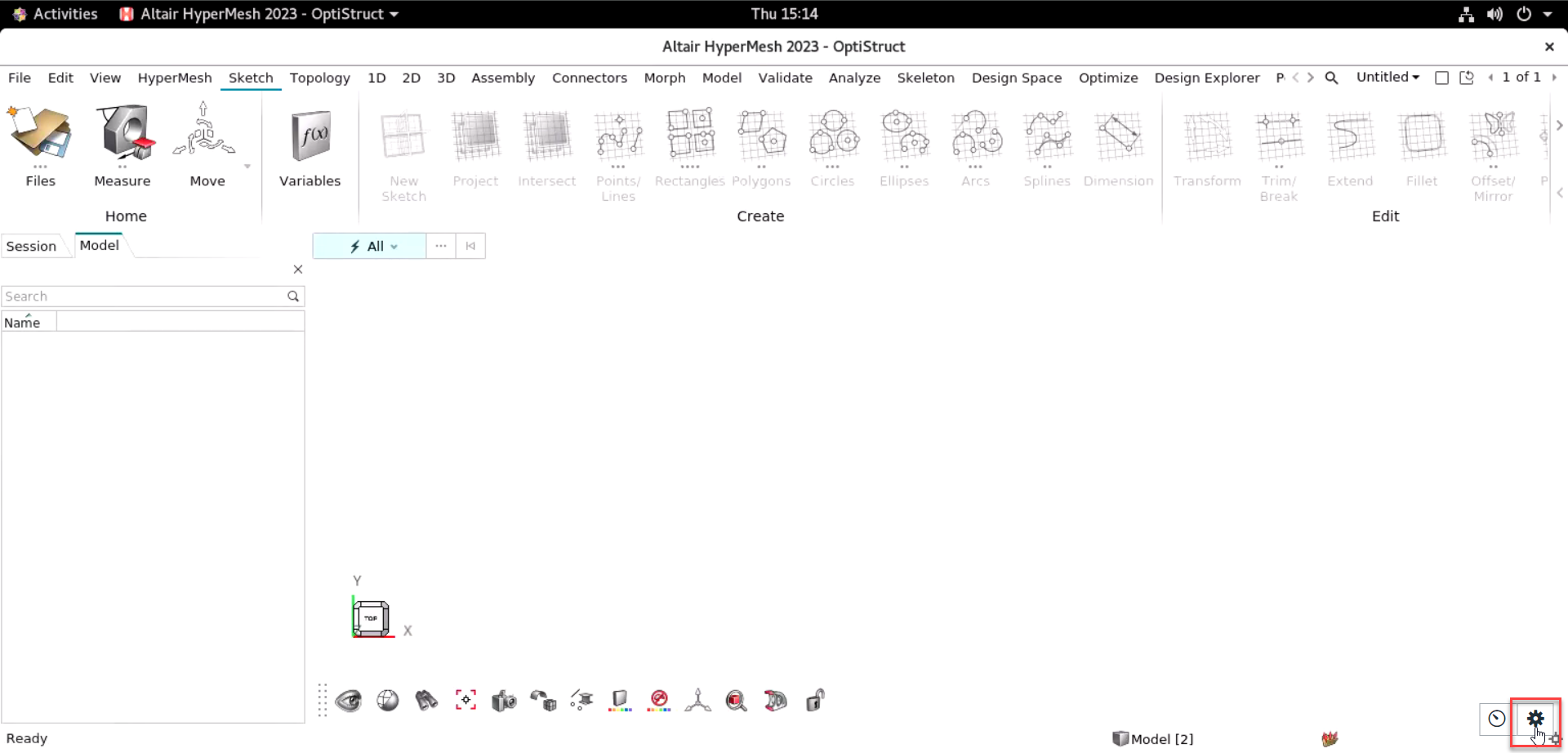

Click
to set the session quality.

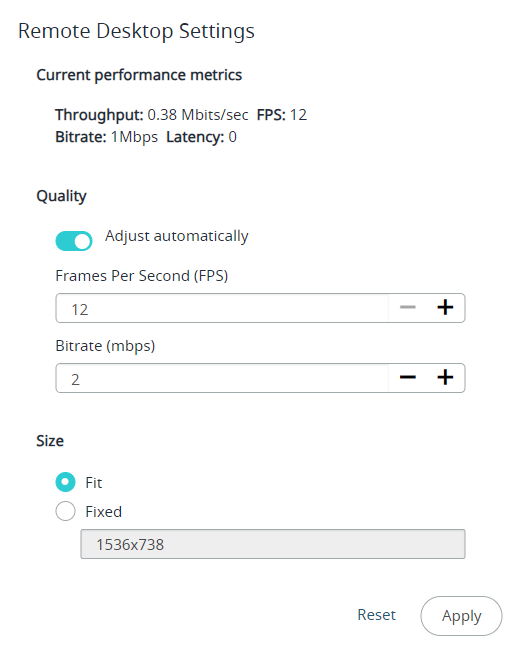

Desktop Quality Settings screen is displayed.Figure 6. Remote Desktop Quality Settings
By default, the desktop quality settings is set to auto adjust and the size is set to fit.
- Move the toggle switch of Adjust automatically to the left to change the frames per second and bitrate of remote desktops.
- Change the Frame Per Second (FPS) value.
- Change the Bitrate (mbps) value.
- Click the Fixed size setting and enter the value.
-
Click Apply.
Note: Click Reset to set the quality settings to the default value.
