View Remote Desktops Statistics Panel
View remote desktops throughput and frames per seconds from the Remote Desktops statistics panel.
Note: By default, the Remote Desktops statistics panel is
disabled. Contact your Administrator to enable it.
The Remote Desktops statistics panel helps to diagnose performance issues. This option is displayed when the remote desktops is in inline view.
-
Click the Desktops tab located in the upper left-hand of
the page.
Remote Desktops list is displayed.

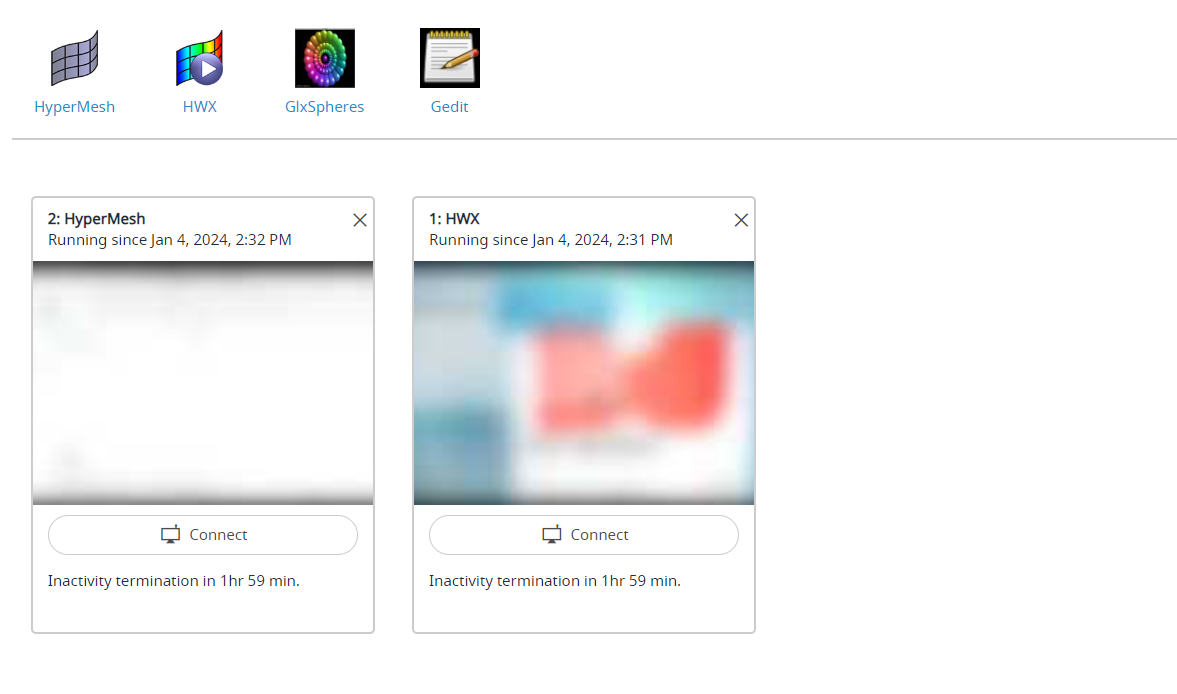

Figure 1. Remote Desktops List
-
Click Connect.
Figure 2. Remote Desktops Connect

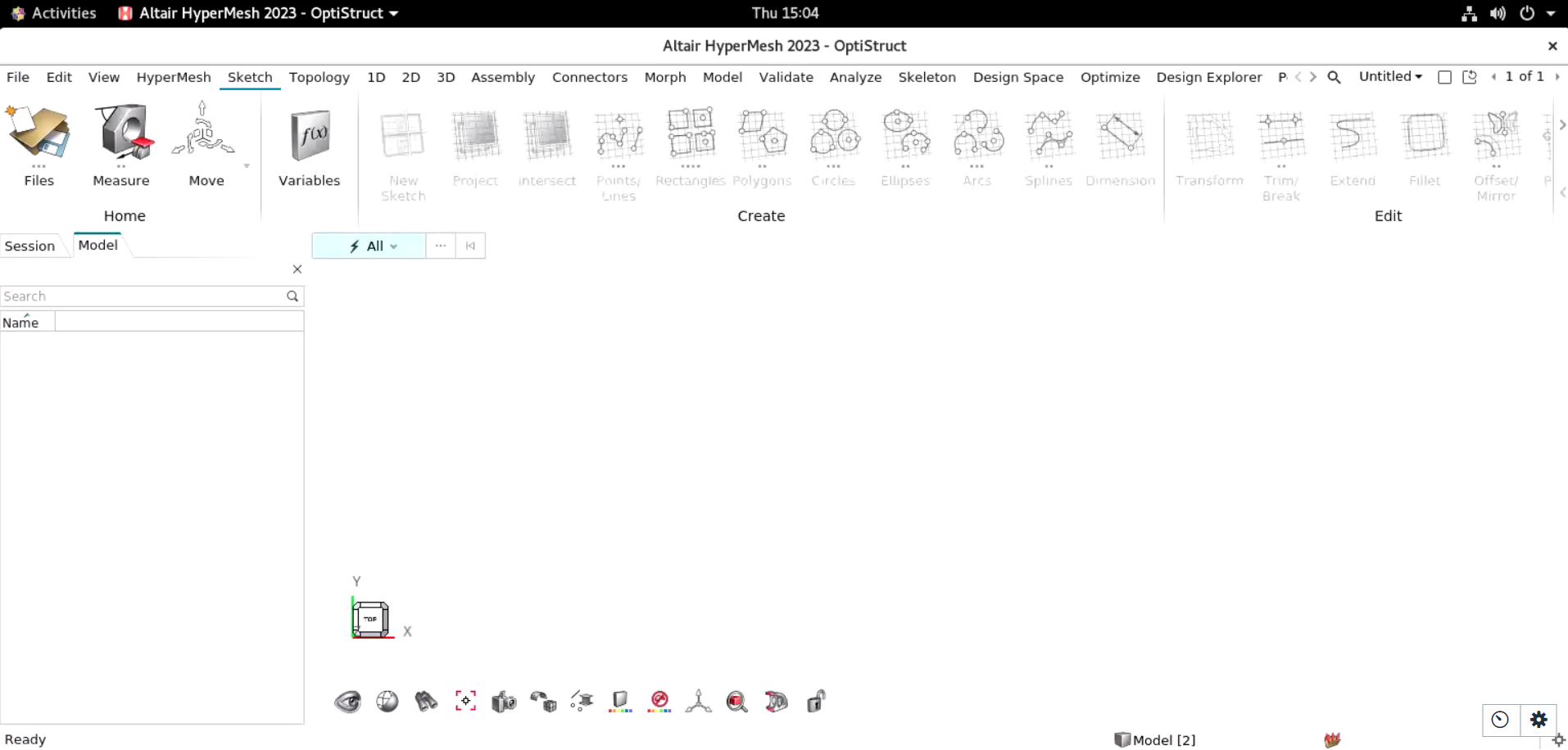

Note: By default, the timeout interval when a remote desktops is opened is set to unlimited. The default configured timeout value is set to 120 minutes (2 hours) for a remote desktops and it is displayed in the remote desktops tile. Time out will start when the remote desktops is closed, and the remaining time is displayed in the remote desktops tile.A remote desktops of the interactive application is opened in a new window.Figure 3. Opened Remote Desktops
-
Click
to view the remote desktops statistics
information.

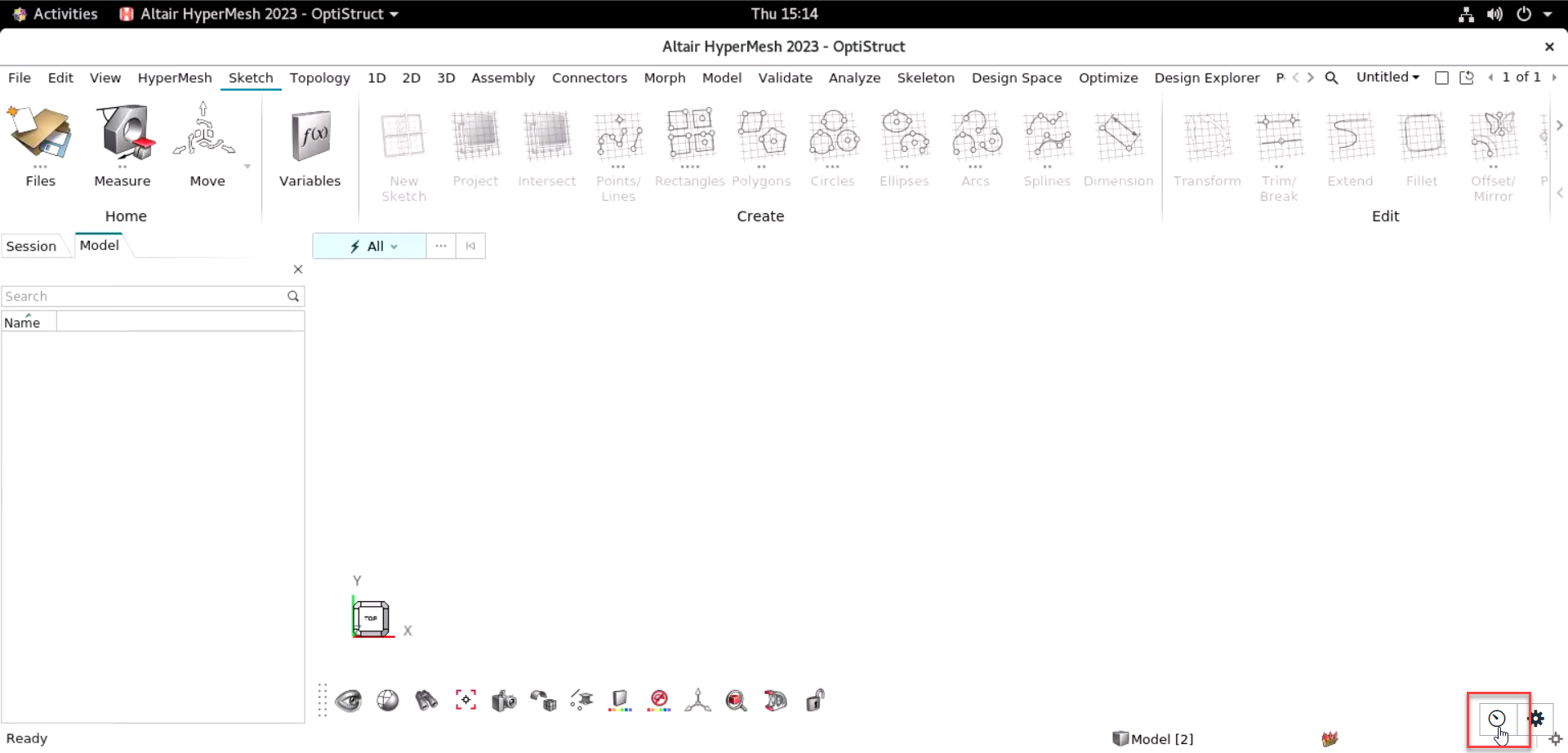

Figure 4. Remote Desktops Statistics Information
The remote desktops statistics information are displayed.Figure 5. Remote Desktops Information
The following statistics information is displayed:- Throughput
- FPS
- Bitrate
- Latency
- Encoder
- Xserver
