Sector

Simulate the change of the sector in Motor Factory

In Motor Factory, in the Design environment, it is possible to modify the structural data of the machine.

The modification of the structural data has an impact on the position of the part in the reference sector.

The compatibility of the new position of the part in the sector must be checked.

In Part Factory, the Sector function of the test area allows to test how the considered part interacts with the structural data of the reference sector in which it is defined.

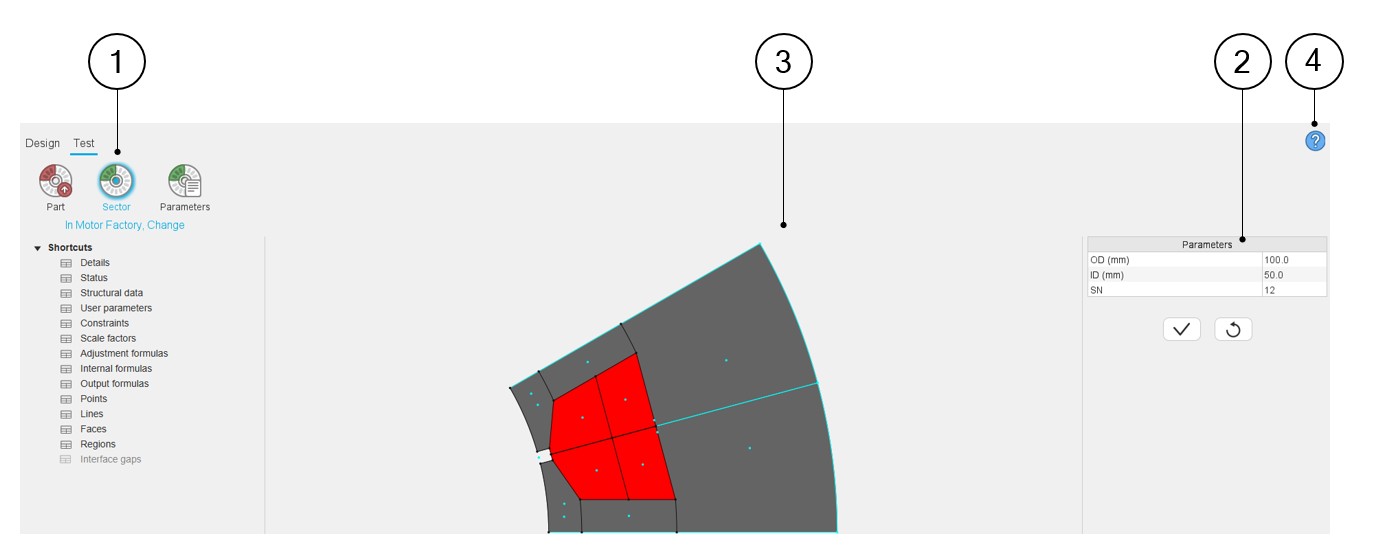

Below is the illustration of the Test environment and the “SECTOR” modification function.

Table 1. Part Factory – Test environment - Simulate the change of the sector in the Motor Factory

1	Section of the second test function: Function to simulate the change of the sector in the Motor Factory. It allows testing how the considered part interacts with the structural data of the reference sector in which it is defined. The user input parameters are the main three dimensions of the sector defined in zone 2.
2	User input parameters define the three main dimensions of the reference sector (structural data).
3	The sector that represents the part is displayed on the central screen of the design environment of Part Factory. In Part Factory, intersection of lines can be viewed. Note: A right click on the mouse allows resetting the zoom if the part becomes invisible. This allows to export a picture in a *.png format.
4	Access to the online user help guide dedicated to the usage of the Test environment of Part Factory.
